Главная Каталог продукции Toolunited 14 303-06 - Ball-nosed end mill 194360 10

194360 10

Артикул: 194360 10

В наличии

В корзину

Описание

Характеристики

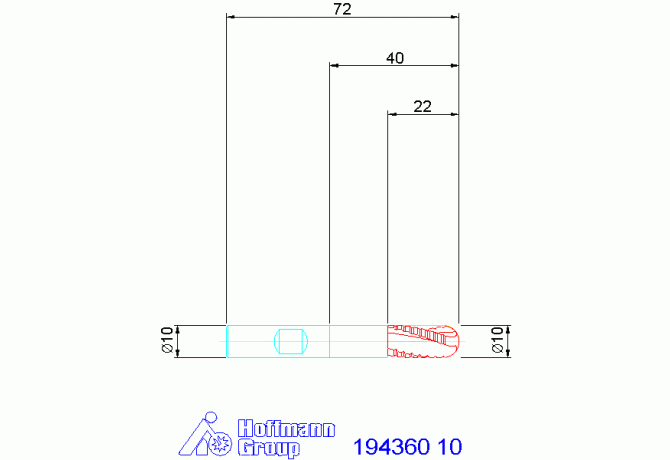

APMX Depth of cut maximum

22 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01000105

DN Neck diameter

10 mm

FamilyProducts

Ball-nosed roughing cutter NR GARANT

FHA Flute helix angle

20 Degree

GRDMFG Grade manufacturers designation

HSS Co

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LH Head length

32 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LPR Protruding length

40 mm

Name Identifying order number

194360 10

OAL Overall length

72 mm

PRFRAD Profile radius 1

5 mm

Working process

No working processes available

WT Weight of item

0.029 kg

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
