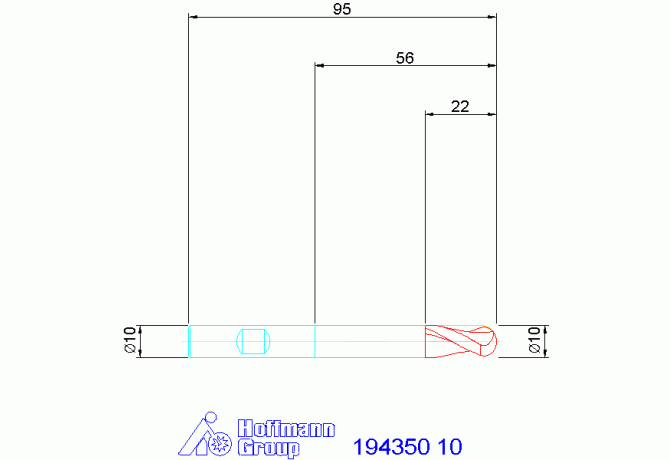

Главная Каталог продукции Toolunited 14 303-06 - Ball-nosed end mill 194350 10

194350 10

Артикул: 194350 10

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

22 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01000105

FamilyProducts

Ball-nosed slot drill long HSS-Co8 TiAlN GARANT

FHA Flute helix angle

30 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-06 - Ball-nosed end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LPR Protruding length

56 mm

Name Identifying order number

194350 10

OAL Overall length

95 mm

PRFRAD Profile radius 1

5 mm

Working process

No working processes available

WT Weight of item

0.039 kg

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
