Главная Каталог продукции Toolunited 14 307-06 - Threading end mill MTSRH 32-5

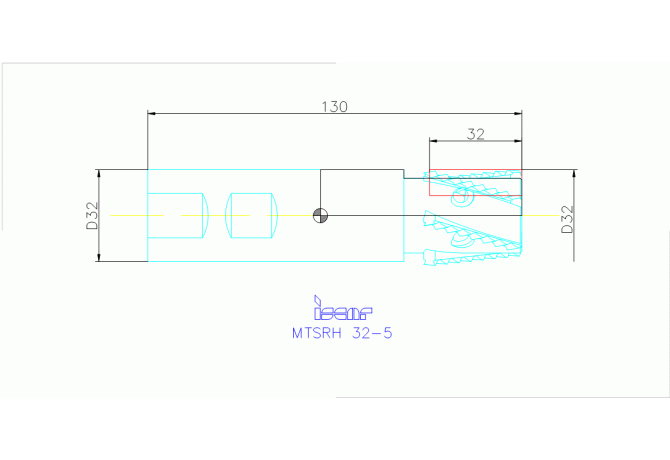

MTSRH 32-5

Артикул: 3105400

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

32 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

ZYL03201015

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

MTSRH 32-5

HAND Cutting direction

R - Right

ID Technical product number

3105400

Interface codes

J6 /

ISYC Subclass

307-06 - Threading end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201015

LU Usable length

60 mm

Name Identifying order number

MTSRH 32-5

OAL Overall length

130 mm

Working process

No working processes available

WT Weight of item

0.7 kg

ZEFP Peripheral effective cutting edge count
