Главная Каталог продукции Toolunited 14 307-06 - Threading end mill 17Y1E060064K5R00

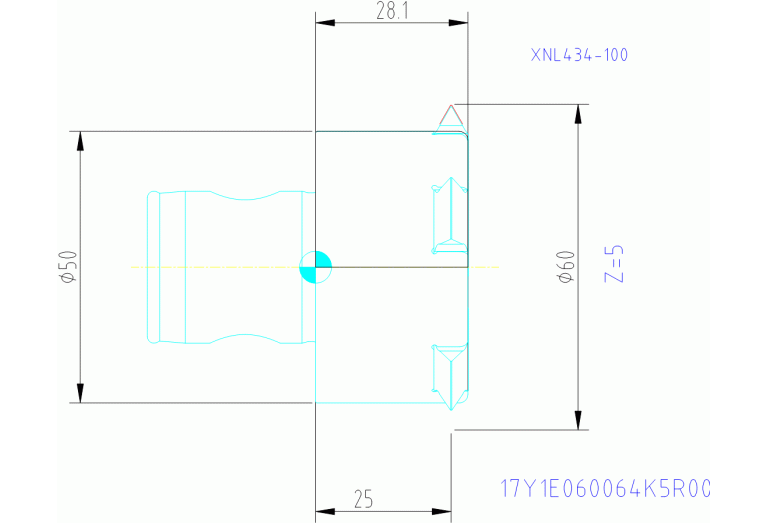

17Y1E060064K5R00

Артикул: 3063827

В наличии

В корзину

Описание

Характеристики

BLDB Tool style code Position B

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

60 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

ABS05000115

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Thread Mill 17Y1

HAND Cutting direction

R - Right

ID Technical product number

3063827

Interface codes

J6 /

ISISO B Indicator for ISO cutting plate Pos.B

ISYC Subclass

307-06 - Threading end mill

LF Functional length

59.1 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ABS05000115

LPR Protruding length

28.5 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

17Y1E060064K5R00

OAL Overall length

59.1 mm

Working process

No working processes available

WT Weight of item

0.48 kg

ZEFP Peripheral effective cutting edge count
