Главная Каталог продукции Toolunited 14 307-03 - Non-centre cutting single row dovetail end mill E93CN D25-2-L180-C25-10

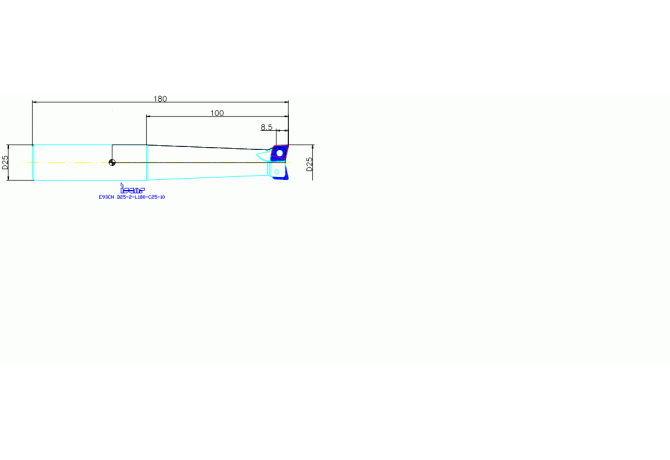

E93CN D25-2-L180-C25-10

Артикул: 3103791

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

8 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

25 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL02500105

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Toroidal Bull Nose Endmills with CNHT...and ENHT... Inserts

HAND Cutting direction

R - Right

ID Technical product number

3103791

Interface codes

J6 / J61

ISO

ZYL01G2500h$06

ISYC Subclass

307-03 - Non-centre cutting single row dovetail end mill

KAPR Tool cutting edge angle

93 Degree

LF Functional length

180 mm

LH Head length

100 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500105

LPR Protruding length

124 mm

Name Identifying order number

E93CN D25-2-L180-C25-10

OAL Overall length

180 mm

RMPX Ramping angle maximum

0 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.57 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
