Главная Каталог продукции Toolunited 14 307-03 - Non-centre cutting single row dovetail end mill E93CN D20-3-L140-C19-07

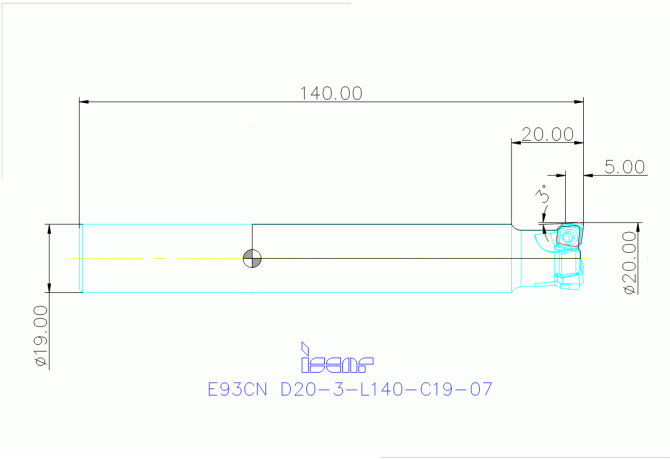

E93CN D20-3-L140-C19-07

Артикул: 3103061

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

5 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL01900105

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Toroidal Bull Nose Endmills with CNHT...and ENHT... Inserts

HAND Cutting direction

R - Right

ID Technical product number

3103061

Interface codes

J6 / J61

ISO

ZYL01G1900h$06

ISYC Subclass

307-03 - Non-centre cutting single row dovetail end mill

KAPR Tool cutting edge angle

93 Degree

LF Functional length

140 mm

LH Head length

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0190

LOC-03 DCONMS Diameter

19 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1900h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01900105

LPR Protruding length

90 mm

Name Identifying order number

E93CN D20-3-L140-C19-07

OAL Overall length

140 mm

RMPX Ramping angle maximum

0 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.29 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
