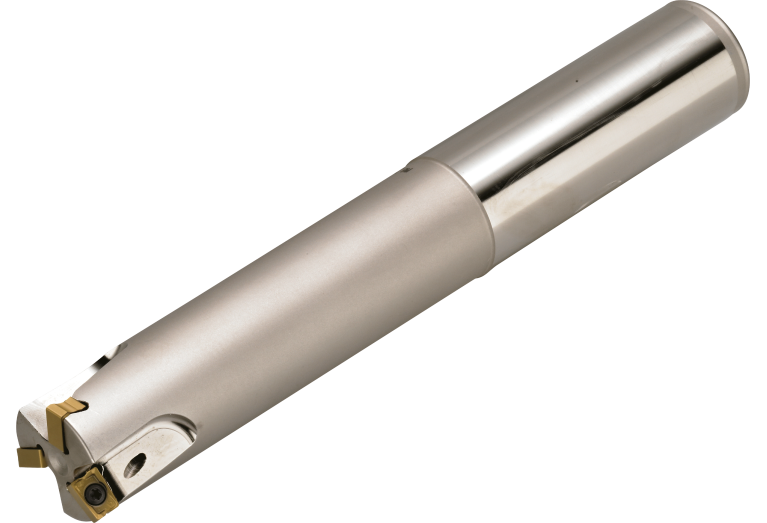

Главная Каталог продукции Toolunited 14 307-10 - Spot facing end mill RM4ZM3025HR-M12

RM4ZM3025HR-M12

RM4ZM3025HR-M12 RM4ZM3025HR-M12 RM4ZM3025HR-M12

RM4ZM3025HR-M12

Korloy
Артикул: 1-06-021133
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
1.5 mm
BD Body diameter
23 mm
BI Block index
1
CCONMS Connection count machine side
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
SAK01200115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
RM4ZM3000
GAMF Rake angle radial
-17 Degree
GAMP Rake angle axial
-11 Degree
HAND Cutting direction
R - Right
ID Technical product number
1-06-021133
Interface codes
J6 /
ISYC Subclass
307-10 - Spot facing end mill
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
LN1006PN4L
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAK Screw mounting KOMET
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAK01200115
LPR Protruding length
35 mm
Name Identifying order number
RM4ZM3025HR-M12
OAL Overall length
59 mm
THSZMS Connection thread nominal size machine side
M12
Working process
No working processes available
WT Weight of item
0.11 kg
ZEFP Peripheral effective cutting edge count
2
