Главная Каталог продукции Toolunited 14 307-10 - Spot facing end mill PH D40-H090-W32-13

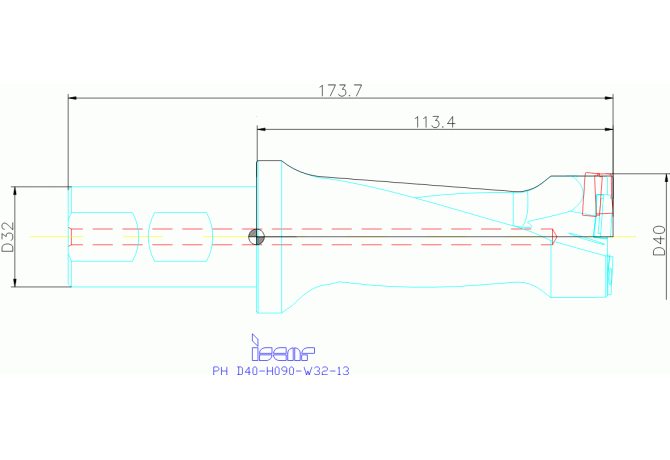

PH D40-H090-W32-13

Артикул: 3102318

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL03201015

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

High Productivity Center Cutting Plungers with PLHT 1305-PDX Inserts

HAND Cutting direction

R - Right

ID Technical product number

3102318

Interface codes

J6 / J61

ISO

ZYL10G3200h$06

ISYC Subclass

307-10 - Spot facing end mill

LH Head length

105.7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G3200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201015

LPR Protruding length

113.7 mm

LU Usable length

90 mm

Name Identifying order number

PH D40-H090-W32-13

OAL Overall length

173.7 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.97 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
