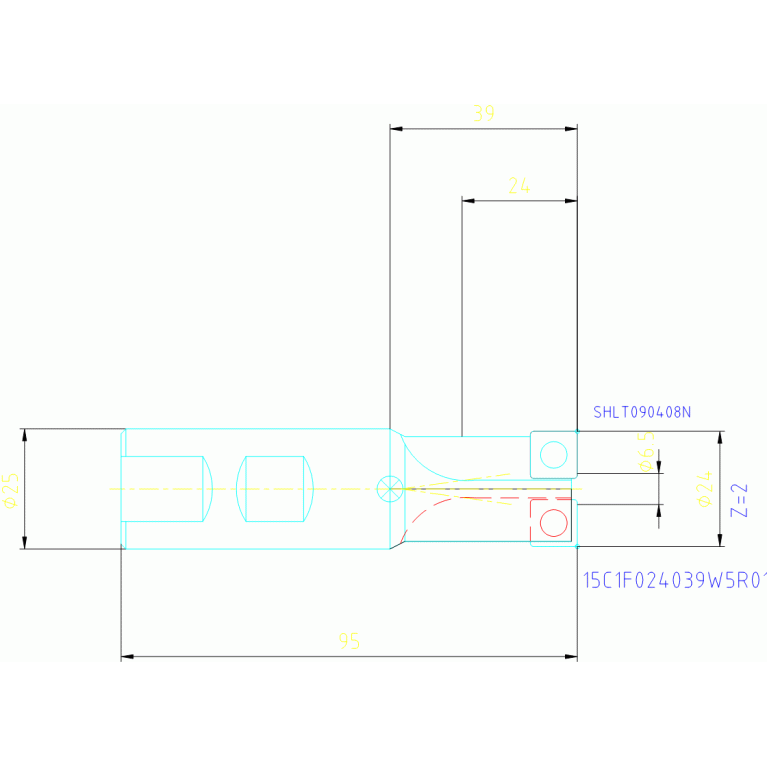

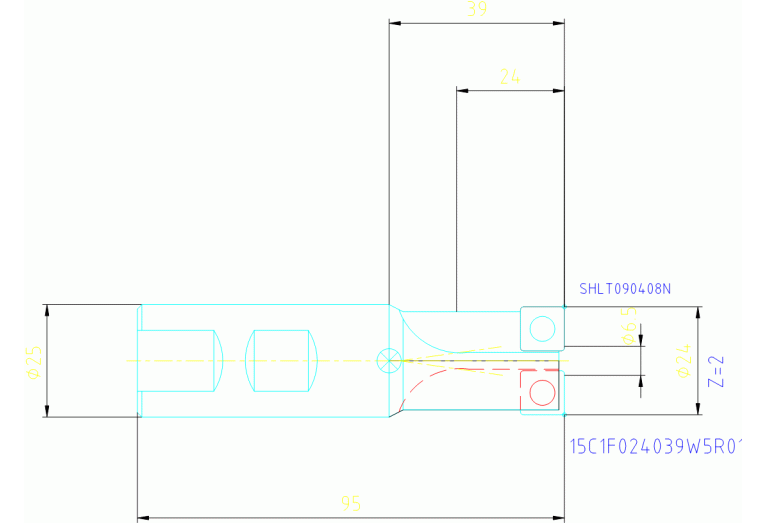

Главная Каталог продукции Toolunited 14 307-10 - Spot facing end mill 15C1F024039W5R01

15C1F024039W5R01

15C1F024039W5R01 15C1F024039W5R01 15C1F024039W5R01 15C1F024039W5R01

15C1F024039W5R01

Ingersoll
Артикул: 3240631
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
7.3 mm
BI Block index
1
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
6.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL02501015
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
Counterboring End Mill 15C1...W
HAND Cutting direction
R - Right
ID Technical product number
3240631
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-10 - Spot facing end mill
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
339
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
IL-WSP-363
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
339
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IL-WSP-479
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501015
LU Usable length
24 mm
MIID Master insert identification
339
MILTTY Mill tool type ISO
M - Counterbore milling cutter 0°
Name Identifying order number
15C1F024039W5R01
OAL Overall length
95 mm
Working process
No working processes available
WT Weight of item
0.27 kg
