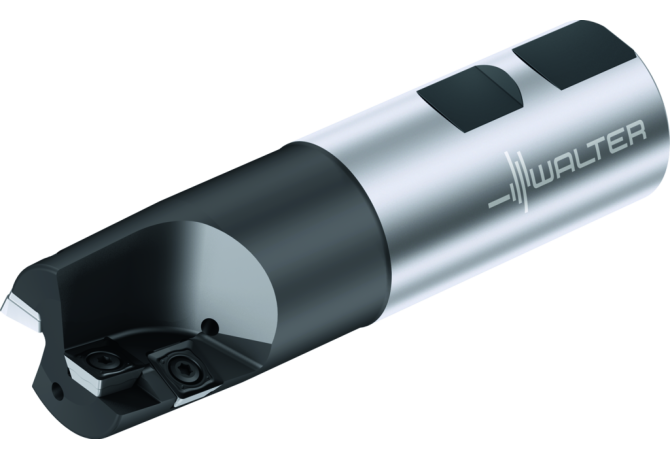

M4792.024-W26-01-13

M4792.024-W26-01-13

Walter
Артикул: 6866260
В наличии
В корзину
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
13.3 mm
BD Body diameter
24.4 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
24.64 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL10001035
FamilyProducts
Routing cutters M4792
HAND Cutting direction
R - Right
ID Technical product number
6866260
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
ZYL10S1000h$06
ISYC Subclass
307-09 - Centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10S1000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10001035
LPR Protruding length
43 mm
LU Usable length
43 mm
MILTTY Mill tool type ISO
H - Slotting end mill (one or more indexable insert pro cutting edge) 90°
Name Identifying order number
M4792.024-W26-01-13
OAL Overall length
100.94 mm
RPMX Rotational speed maximum
9999 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
ISO3338-2
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling,FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.323 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
