Главная Каталог продукции Toolunited 14 307-09 - Centre cutting multiple rows end mill E90XC D16-11-W16-06

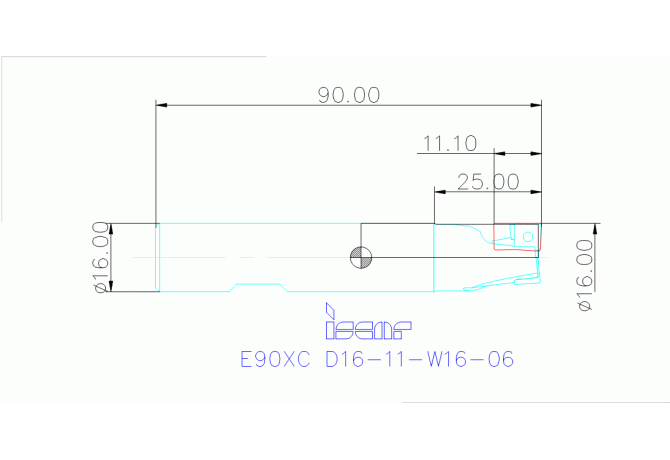

E90XC D16-11-W16-06

E90XC D16-11-W16-06 E90XC D16-11-W16-06

E90XC D16-11-W16-06

Iscar
Артикул: 3110364
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
11.1 mm
BI Block index
1
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/2/2018
DIN
ZYL01601015
FamilyProducts
Drilling Endmills Carrying Square S/XOMT Inserts
HAND Cutting direction
R - Right
ID Technical product number
3110364
Interface codes
J6 / J61
ISO
ZYL10G1600h$06
ISYC Subclass
307-09 - Centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LH Head length
25 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
SOMT 0602..-HQ
LOC-01 ISO
IS$$356987928173142
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
IS-SO0602043N
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SOMT 0602..-HQ
LOC-02 ISO
IS$$356987928173142
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IS-SO0602043N
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL10G1600h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601015
MIID Master insert identification
SOMT 0602..-HQ
Name Identifying order number
E90XC D16-11-W16-06
OAL Overall length
90 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.12 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
