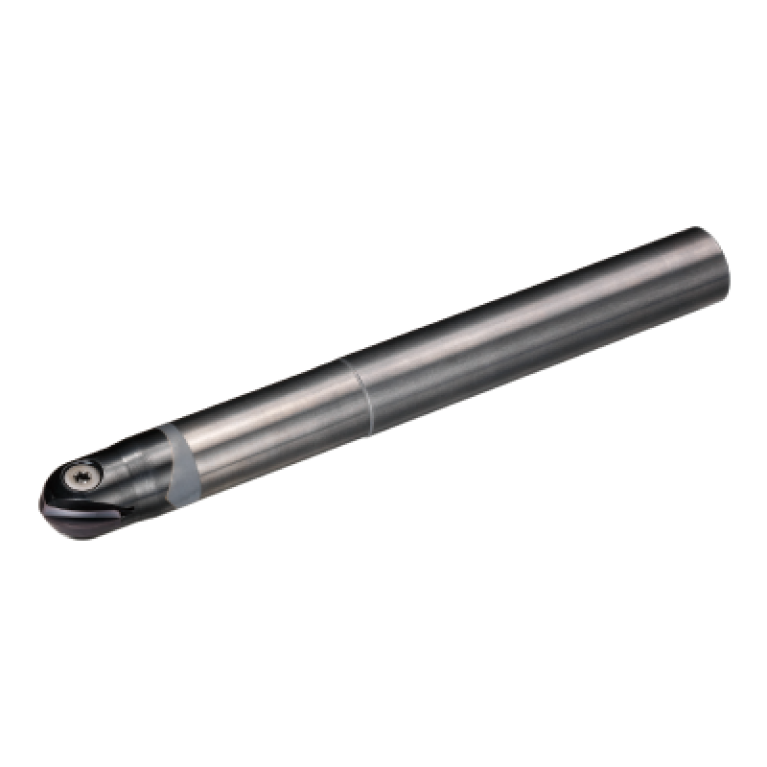

SRFH16S16EW
SRFH16S16EW
Артикул:
448542
В наличии
Характеристики

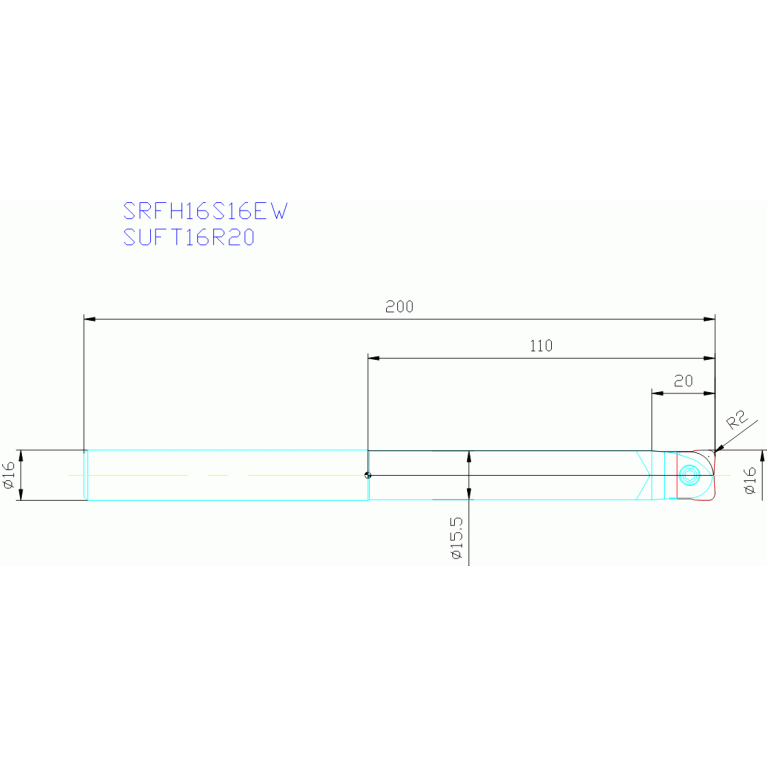

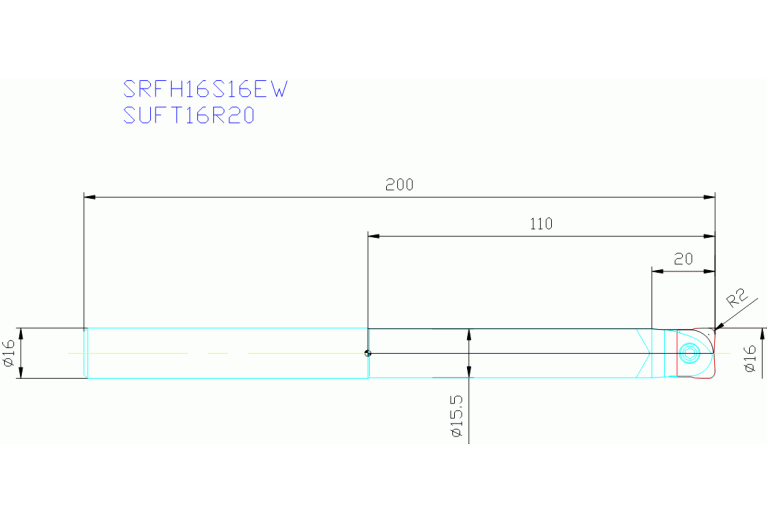

B3A Inscribed circle diameter Pos. A
16 mm
BD Body diameter
15.5 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
4 mm
CCONMS Connection count machine side
1
CICT Cutting item count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
8 mm
DC Cutting diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL01600115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
1
FamilyProducts
end mills
HAND Cutting direction
R - Right
ID Technical product number
448542
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-13 - Die and mold end mill
LF Functional length
200 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01600115
LPR Protruding length
110 mm
MILTTY Mill tool type ISO
L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°
Name Identifying order number
SRFH16S16EW
OAL Overall length
200 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
2
