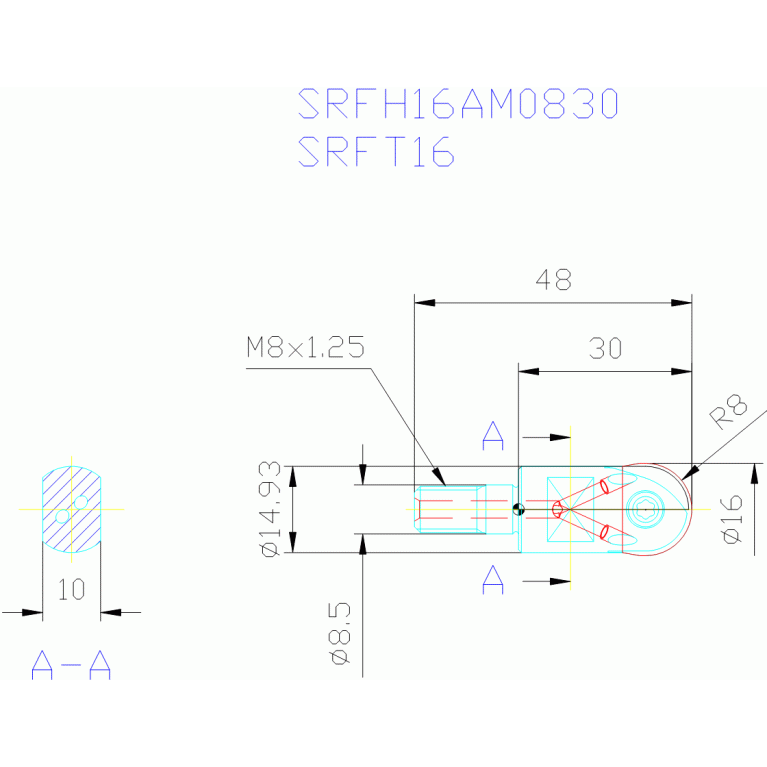

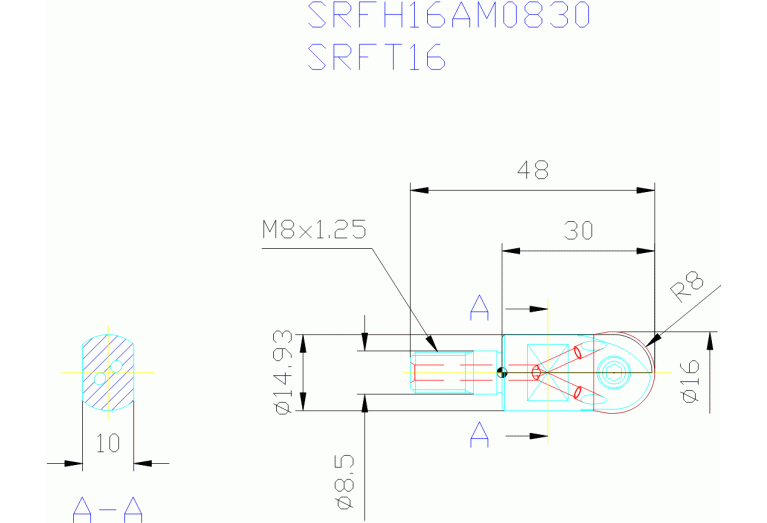

SRFH16AM0830
SRFH16AM0830
Артикул:
546767
В наличии
Характеристики
B3A Inscribed circle diameter Pos. A
16 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
4 mm
CCONMS Connection count machine side
1
CICT Cutting item count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
8 mm
DC Cutting diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
SAD00800115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
1
FamilyProducts
end mills
HAND Cutting direction
R - Right
ID Technical product number
546767
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-13 - Die and mold end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD00800115
MILTTY Mill tool type ISO
L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°
Name Identifying order number
SRFH16AM0830
OAL Overall length
48 mm
THSZMS Connection thread nominal size machine side
M8
Working process
No working processes available
WT Weight of item
0.1 kg
ZEFF Face effective cutting edge count
2
