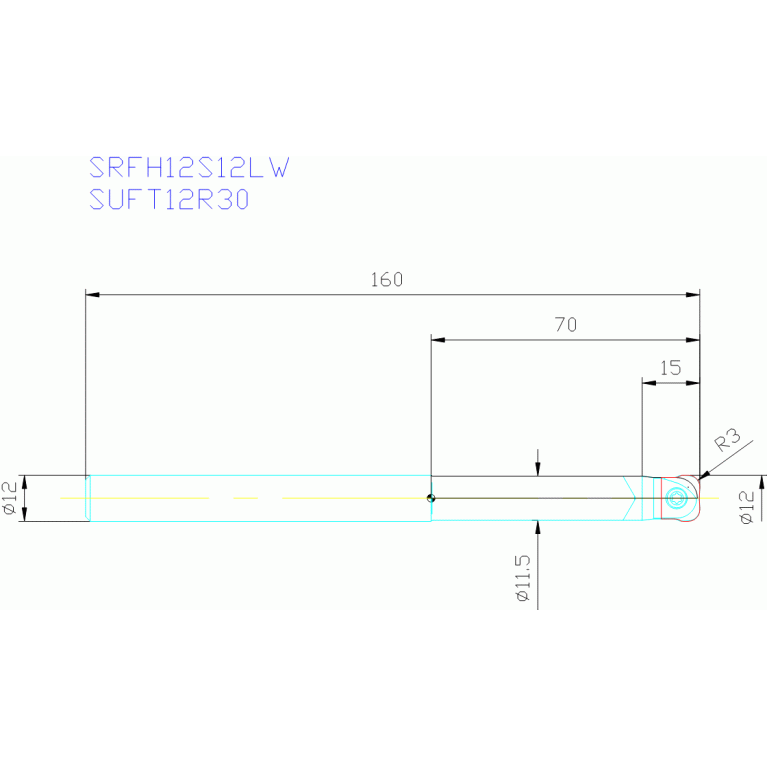

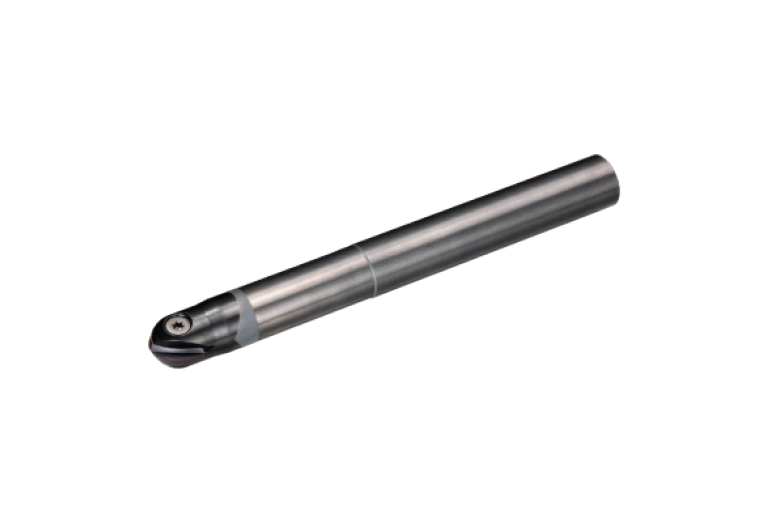

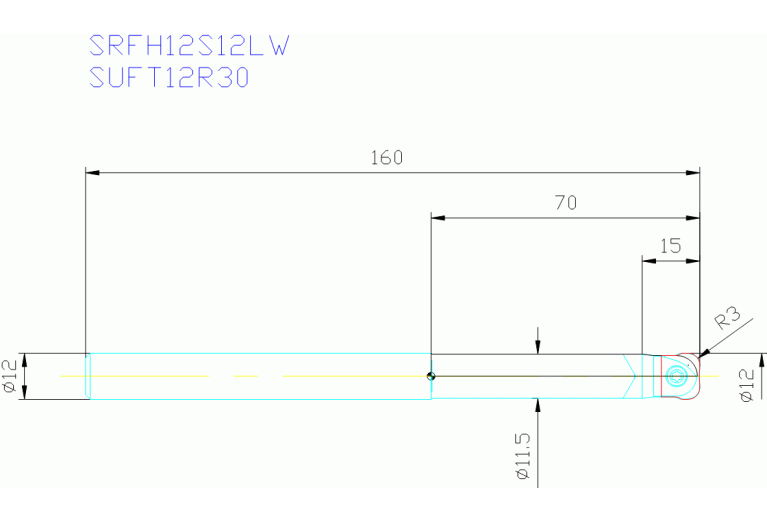

Главная Каталог продукции Toolunited 14 307-13 - Die and mold end mill SRFH12S12LW

SRFH12S12LW

Артикул: 448497

В наличии

В корзину

Описание

Характеристики

B3A Inscribed circle diameter Pos. A

12 mm

BD Body diameter

11.5 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

3 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

6 mm

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01200115

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

end mills

HAND Cutting direction

R - Right

ID Technical product number

448497

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

307-13 - Die and mold end mill

LF Functional length

160 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200115

LPR Protruding length

70 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

SRFH12S12LW

OAL Overall length

160 mm

Working process

No working processes available

ZEFF Face effective cutting edge count
