Главная Каталог продукции Toolunited 14 307-13 - Die and mold end mill F2139.5.03.064.25

F2139.5.03.064.25

F2139.5.03.064.25 F2139.5.03.064.25 F2139.5.03.064.25 F2139.5.03.064.25

F2139.5.03.064.25

Walter
Артикул: 5000984
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
12.5 mm
BD Body diameter
23 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
MKG00301085
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
1
FamilyProducts
Profile milling cutters F2139
HAND Cutting direction
R - Right
ID Technical product number
5000984
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
MKG10C0030$$$$
ISYC Subclass
307-13 - Die and mold end mill
LF Functional length
64 mm
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
MKG Morse taper
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0030
LOC-03 DCONMS Diameter
3 mm
LOC-03 ISO
MKG10C0030$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MKG00301085
LPR Protruding length
64 mm
LU Usable length
59 mm
MILTTY Mill tool type ISO
L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°
Name Identifying order number
F2139.5.03.064.25

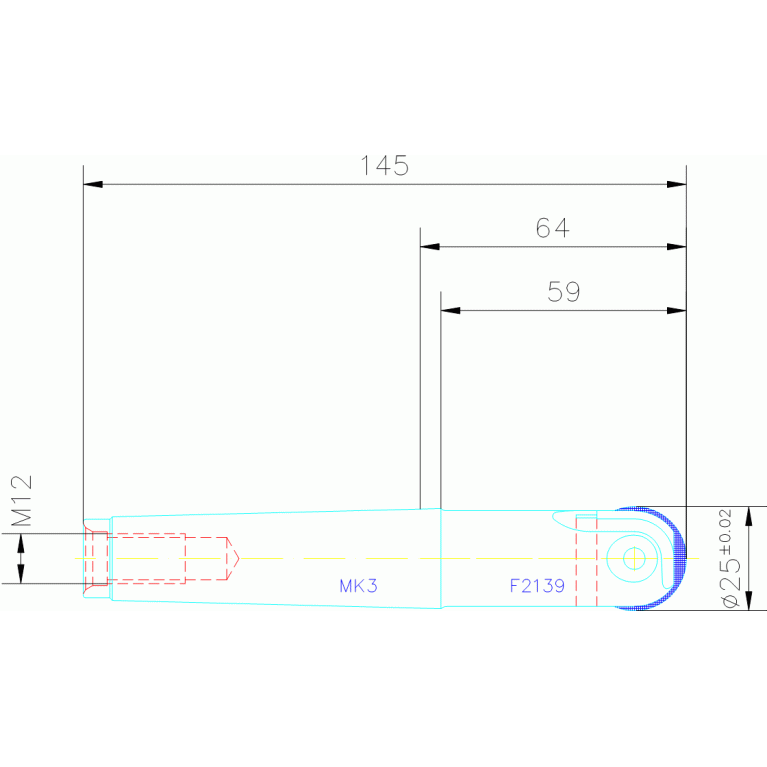

OAL Overall length
145 mm
RPMX Rotational speed maximum
40000 1/min
STDLET Standard letter to the standard number
AE
STDNO Standard
ISO296
Working process
FFO - Die milling
WT Weight of item
0.388 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
