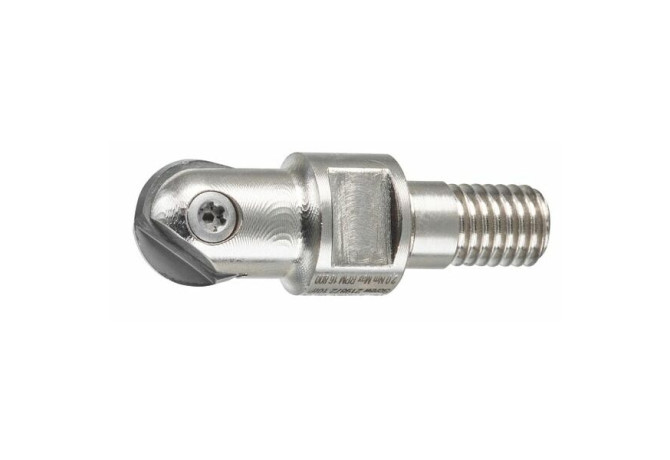

Главная Каталог продукции Toolunited 14 307-13 - Die and mold end mill 212620 12

212620 12

Артикул: 212620 12

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

6 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

SAD00800105

DN Neck diameter

13.5 mm

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

GARANT Copy milling cutter

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-13 - Die and mold end mill

LH Head length

14 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAD Screw mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAD00800105

LPR Protruding length

25 mm

LU Usable length

6 mm

Name Identifying order number

212620 12

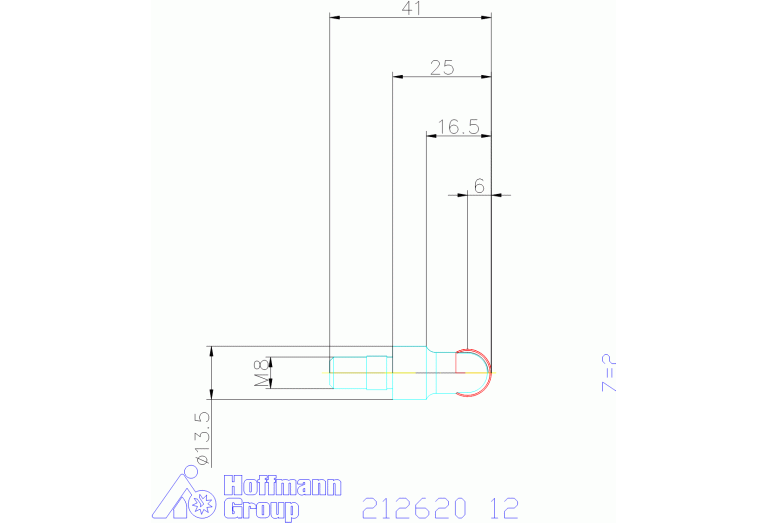

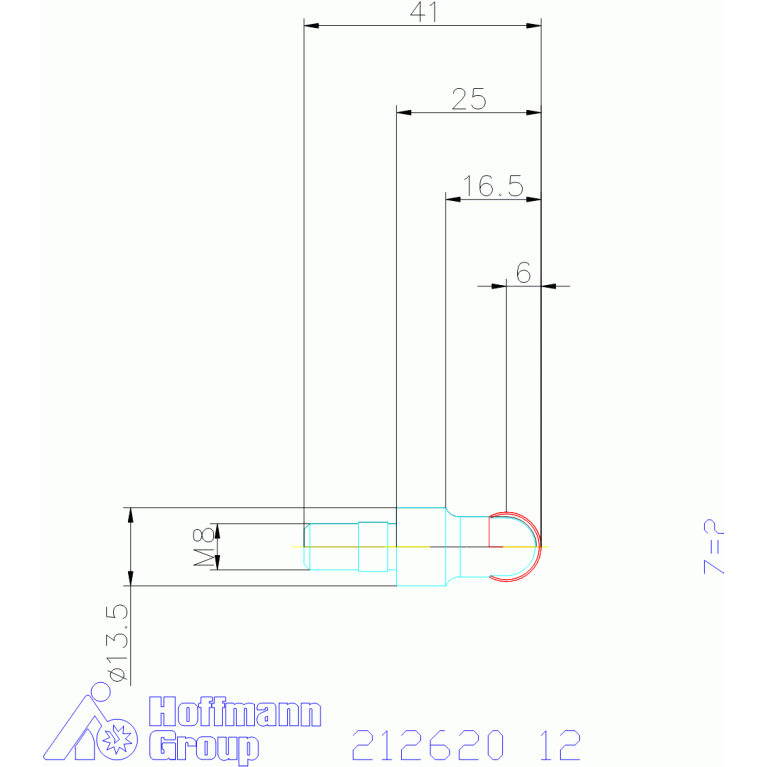

OAL Overall length

41 mm

THSZMS Connection thread nominal size machine side

Working process

No working processes available

WT Weight of item

0.023 kg

ZEFF Face effective cutting edge count
