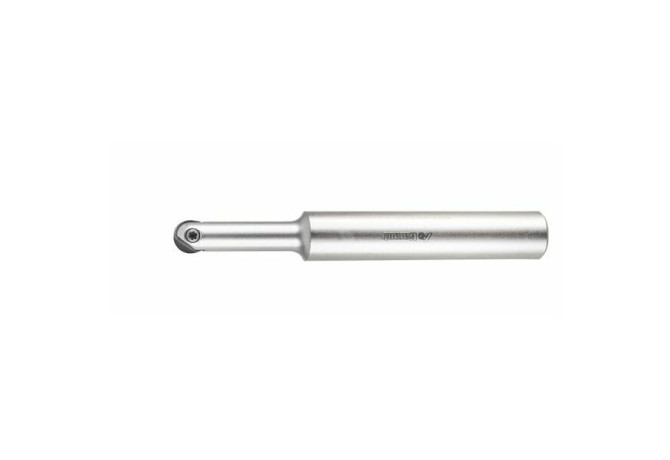

Главная Каталог продукции Toolunited 14 307-13 - Die and mold end mill 212601 8

212601 8

Артикул: 212601 8

В наличии

В корзину

Описание

Характеристики

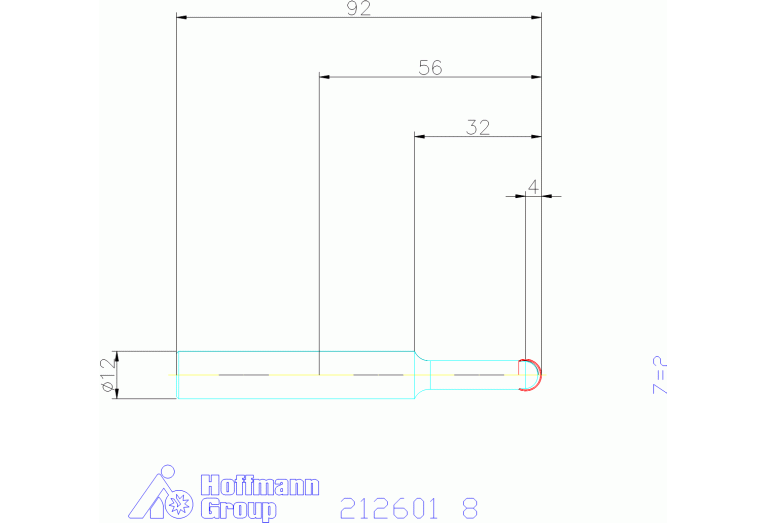

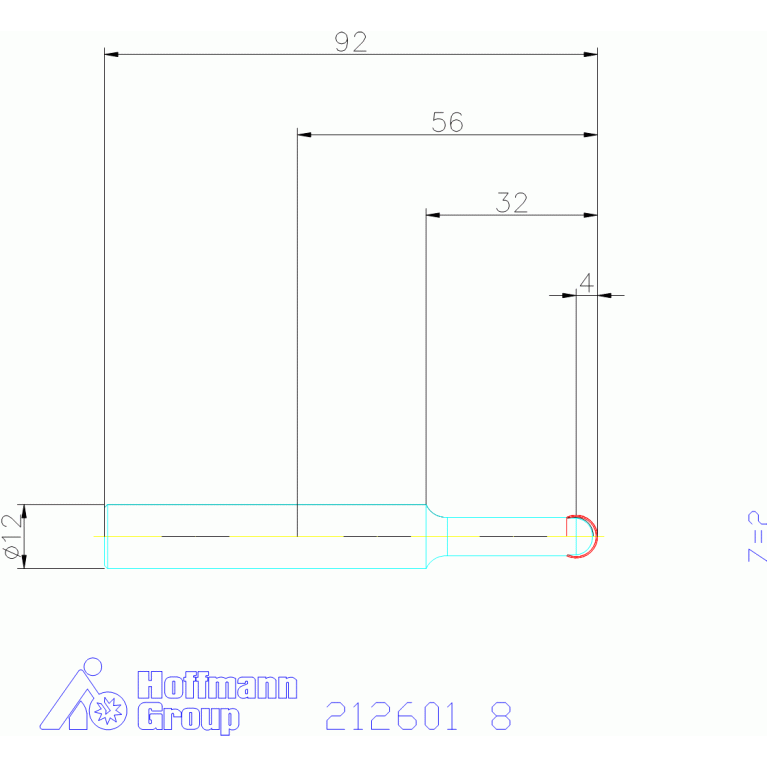

APMX Depth of cut maximum

4 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01201005

DN Neck diameter

12 mm

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

GARANT Copy milling cutter short

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-13 - Die and mold end mill

LH Head length

28 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201005

LPR Protruding length

56 mm

LS Shank length

60 mm

LU Usable length

4 mm

Name Identifying order number

212601 8

OAL Overall length

92 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.063 kg

ZEFF Face effective cutting edge count
