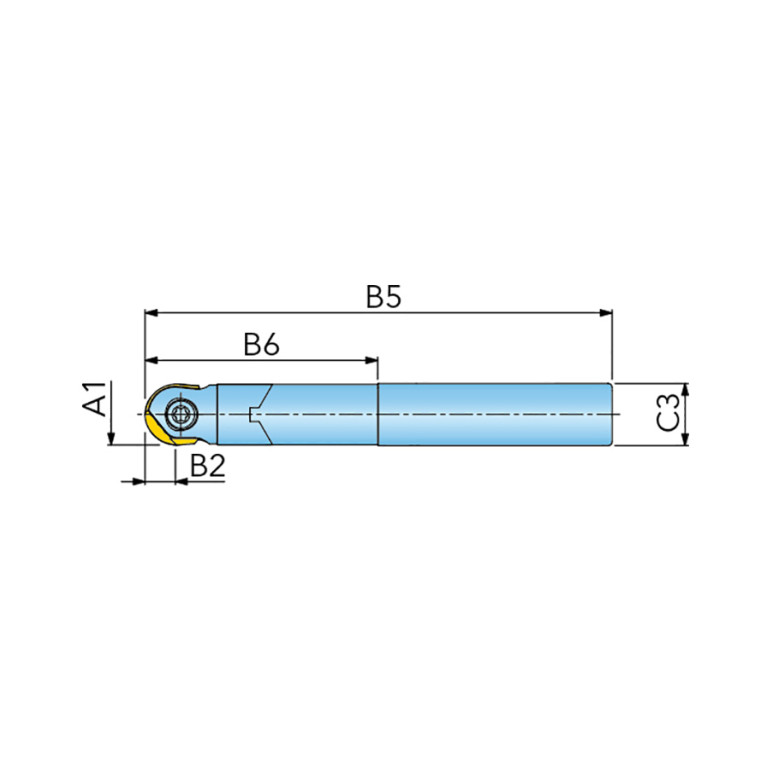

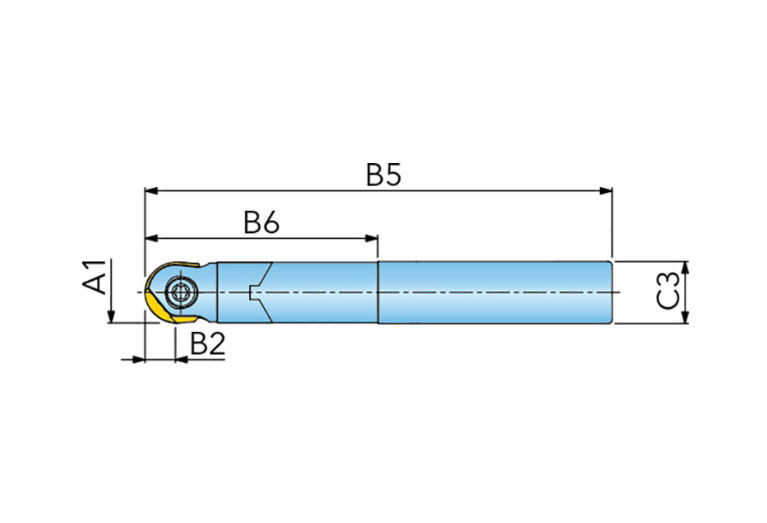

Главная Каталог продукции Toolunited 14 307-13 - Die and mold end mill 12A5R008030T0R00

12A5R008030T0R00

12A5R008030T0R00 12A5R008030T0R00 12A5R008030T0R00 12A5R008030T0R00

12A5R008030T0R00

Ingersoll
Артикул: 3031132
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B1A Cutting edge length Pos. A
4 mm
B2A Insert width Pos. A
8 mm
B3A Inscribed circle diameter Pos. A
8 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
2.38 mm
CCONMS Connection count machine side
2
CICT Cutting item count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
4 mm
DC Cutting diameter
8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/15/2023
DIN
ZYL00800105
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
1
FamilyProducts
Copy Mill carbide shank 12A...
HAND Cutting direction
R - Right
ID Technical product number
3031132
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-13 - Die and mold end mill

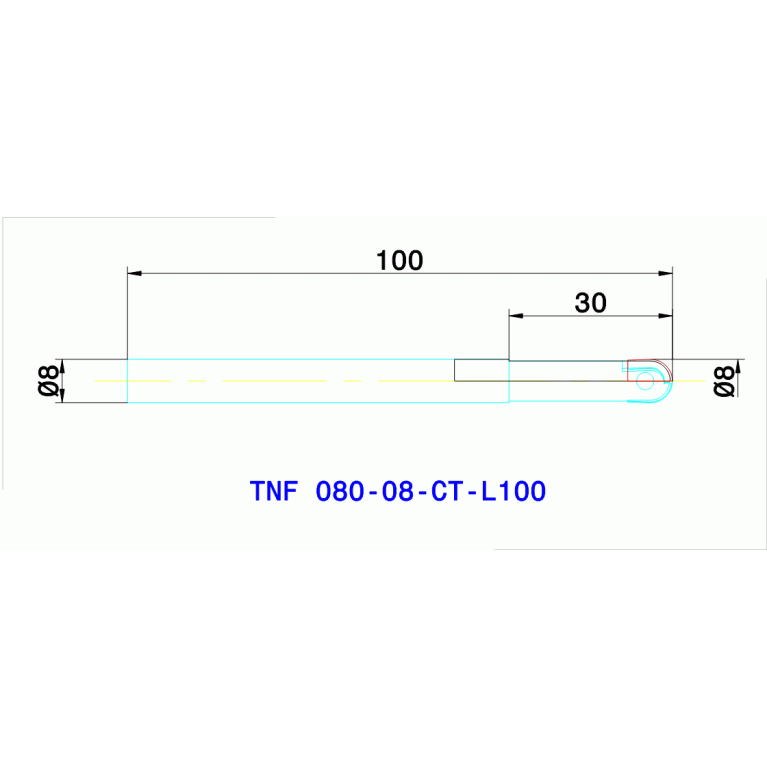

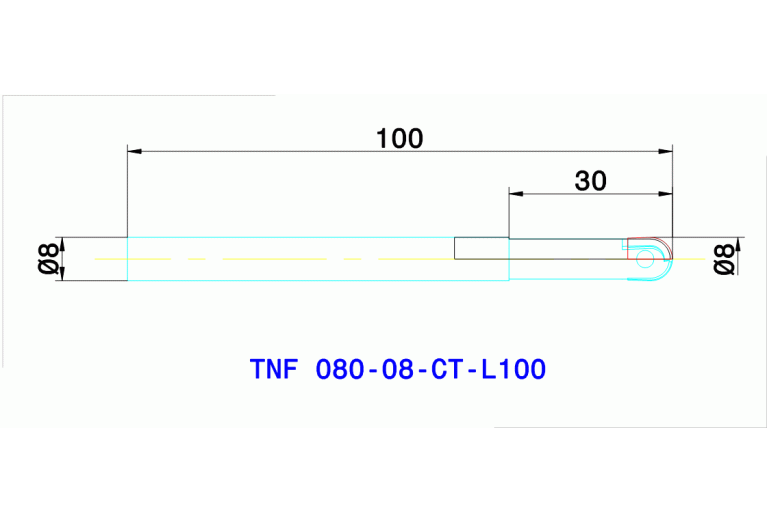

LF Functional length
100 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00800105
LU Usable length
30 mm
MILTTY Mill tool type ISO
L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°
Name Identifying order number
12A5R008030T0R00
OAL Overall length
100 mm
Working process
No working processes available
WT Weight of item
0.065 kg
ZEFF Face effective cutting edge count
2
