Главная Каталог продукции Toolunited 14 307-12 - Angular ball-nosed end mill TRM2320SF40

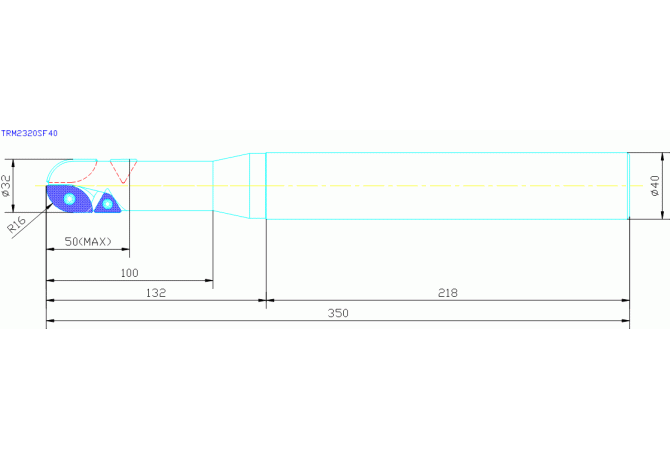

TRM2320SF40

Артикул: TRM2320SF40

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

50 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

32 mm

Delivery state valid from

4/1/2022

DIN

ZYL04000105

FamilyProducts

END MILL

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-12 - Angular ball-nosed end mill

LF Functional length

350 mm

LOC-02 BI Block index

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

TP1603 3N

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04000105

LPR Protruding length

132 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

TRM2320SF40

OAL Overall length

350 mm

Working process

No working processes available
