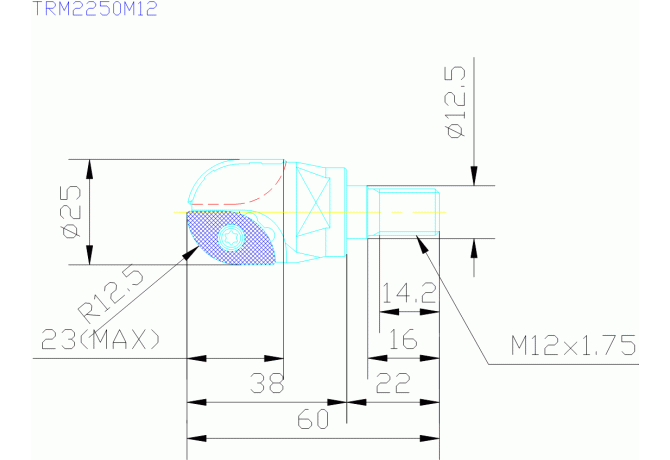

TRM2250M12

Артикул: TRM2250M12

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

23 mm

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

25 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

25 mm

Delivery state valid from

4/1/2022

DIN

SAD01200105

FamilyProducts

END MILL

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-12 - Angular ball-nosed end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAD Screw mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAD01200105

LPR Protruding length

38 mm

MILTTY Mill tool type ISO

K - Ball nose milling cutter (one or more then one indexable insert pro cutting edge)

Name Identifying order number

TRM2250M12

OAL Overall length

60 mm

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
