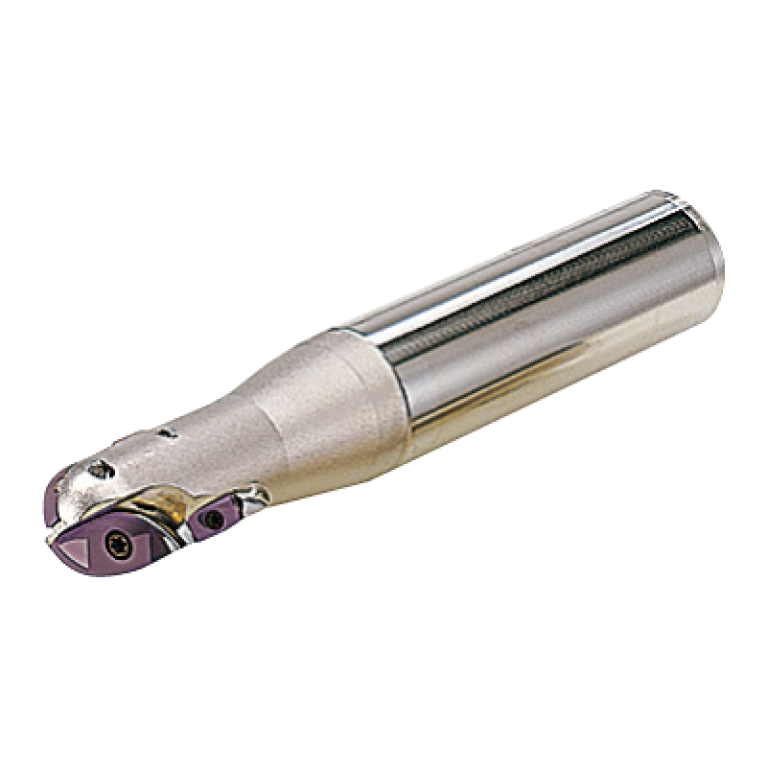

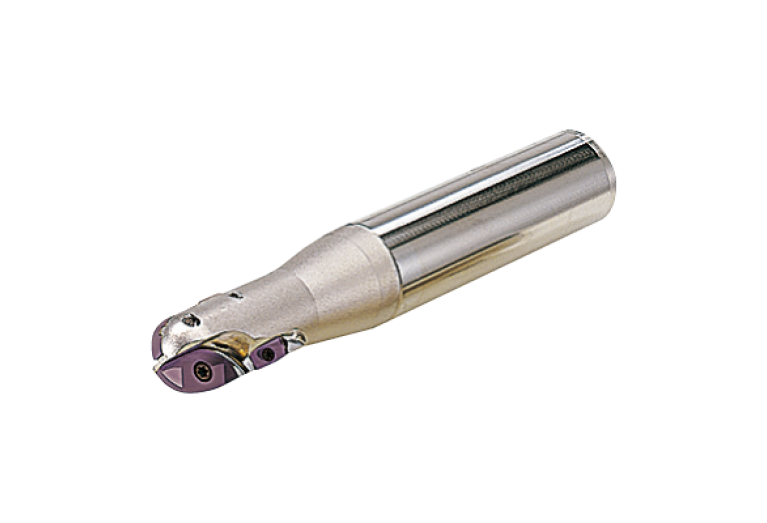

Главная Каталог продукции Toolunited 14 307-12 - Angular ball-nosed end mill SRM2320SAM

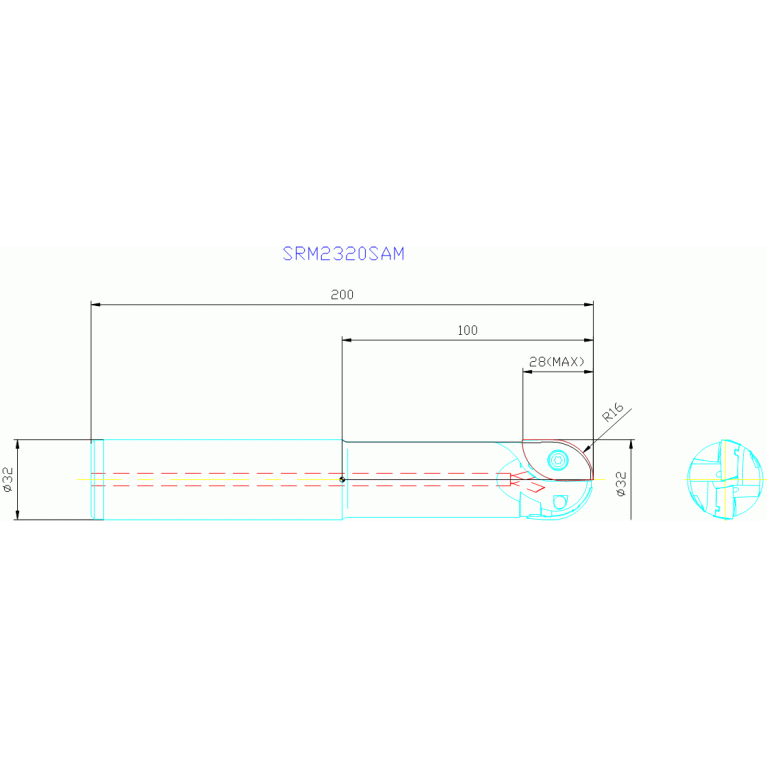

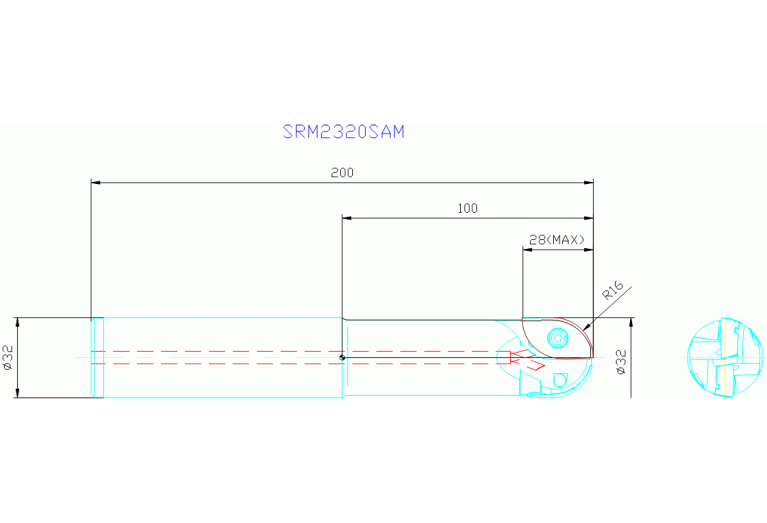

SRM2320SAM

SRM2320SAM

Mitsubishi Materials

Артикул: 10266137

В наличии

В корзину

Описание

Характеристики

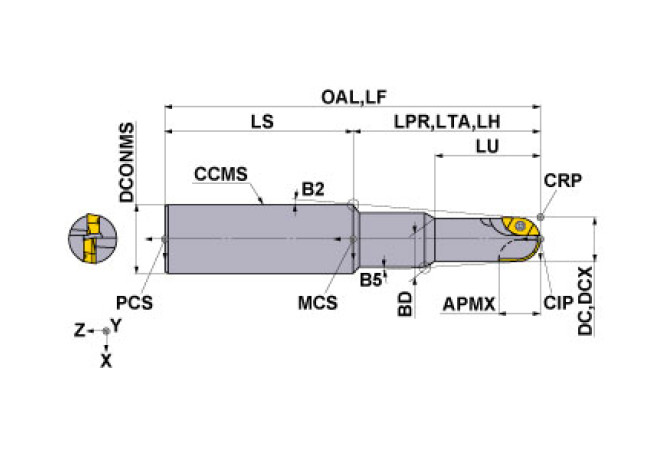

A2A Clearance angle major Pos. A

10 Degree

A2B Clearance angle major Pos. B

10 Degree

APMX Depth of cut maximum

28 mm

B2A Insert width Pos. A

16.3 mm

B2B Insert width Pos. B

16.3 mm

BLDA Tool style code Position A

99

BLDB Tool style code Position B

99

C1A Insert thickness Pos. A

7 mm

C1B Insert thickness Pos. B

7 mm

CCONMS Connection count machine side

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

16 mm

D1B Corner radius Pos. B

16 mm

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL03200115

FamilyProducts

end mills

HAND Cutting direction

R - Right

ID Technical product number

10266137

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISISO B Indicator for ISO cutting plate Pos.B

0

ISYC Subclass

307-12 - Angular ball-nosed end mill

LF Functional length

200 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200115

LPR Protruding length

100 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

SRM2320SAM

OAL Overall length

200 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

2

ZEFP Peripheral effective cutting edge count

2
