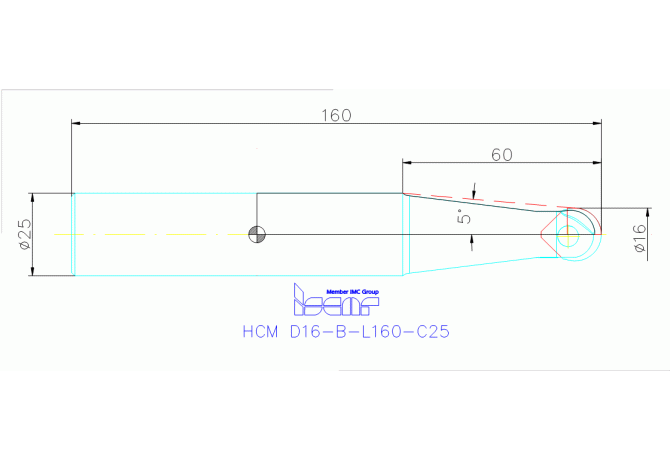

HCM D16-B-L160-C25

HCM D16-B-L160-C25 HCM D16-B-L160-C25

HCM D16-B-L160-C25

Iscar
Артикул: 3103698
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
11.3 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
16 mm
DIN
ZYL02500105
FamilyProducts
Ball Nose Multifunction Endmills D=16 mm
HAND Cutting direction
R - Right
ID Technical product number
3103698
Interface codes
J6 / J61
ISO
ZYL01G2500h$06
ISYC Subclass
307-12 - Angular ball-nosed end mill
KAPR Tool cutting edge angle
45 Degree
LF Functional length
160 mm
LH Head length
60 mm
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
HCR D160-QF
LOC-02 ISO
IS$$67437388753350
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IS-67437388753350
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL01G2500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500105
LPR Protruding length
104 mm
Name Identifying order number
HCM D16-B-L160-C25
OAL Overall length
160 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.49 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
