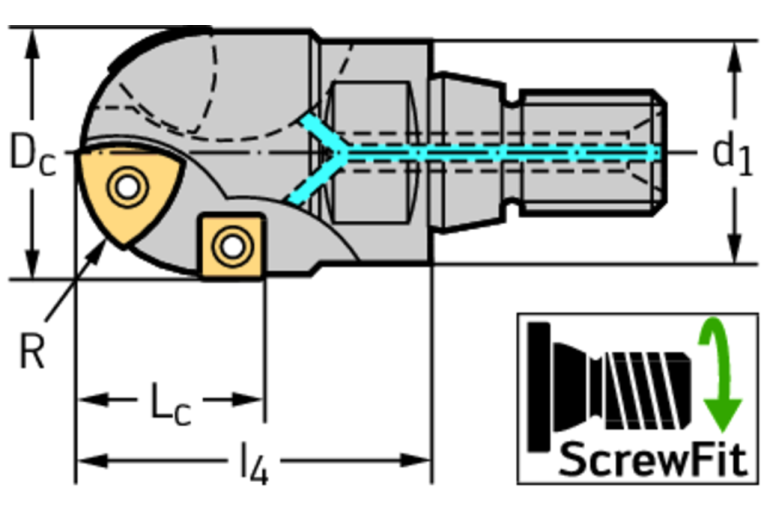

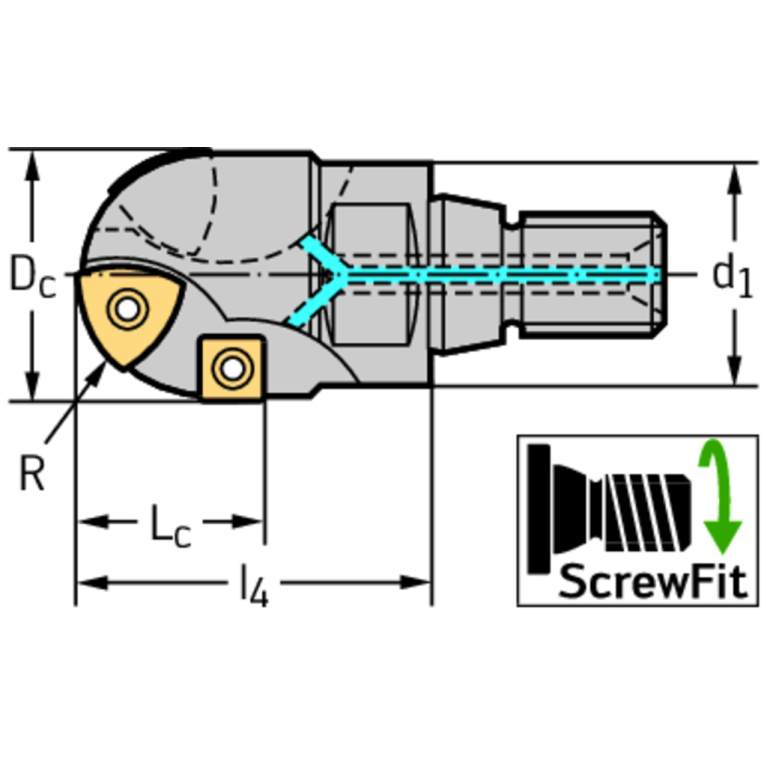

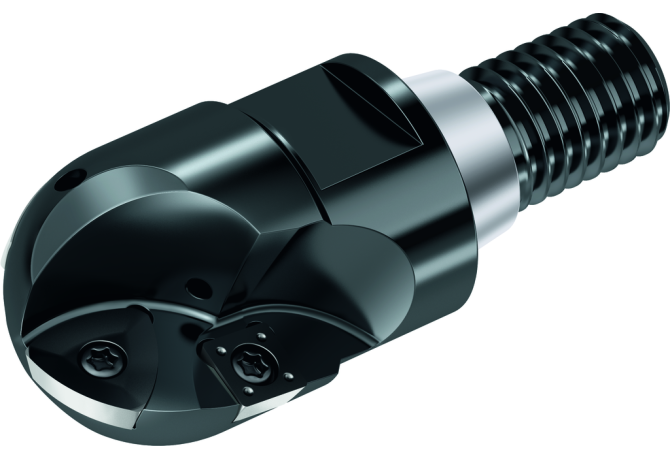

Главная Каталог продукции Toolunited 14 307-12 - Angular ball-nosed end mill F2239.UT36.038.Z01.41

F2239.UT36.038.Z01.41

Артикул: 5050714

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

41 mm

BD Body diameter

36 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

38.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SAW03600185

FamilyProducts

Copy milling cutters F2239

HAND Cutting direction

R - Right

ID Technical product number

5050714

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISO

SAW01C0360$$$$

ISYC Subclass

307-12 - Angular ball-nosed end mill

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAW Screw mounting WALTER

LOC-03 CCUMS Unit base

8 non-dimensional size

LOC-03 CZCMS Size code

0360

LOC-03 DCONMS Diameter

36 mm

LOC-03 ISO

SAW01C0360$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAW03600185

LPR Protruding length

65 mm

LU Usable length

64.0588 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

F2239.UT36.038.Z01.41

OAL Overall length

100 mm

RPMX Rotational speed maximum

11900 1/min

Working process

FFO - Die milling

WT Weight of item

0.399 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
