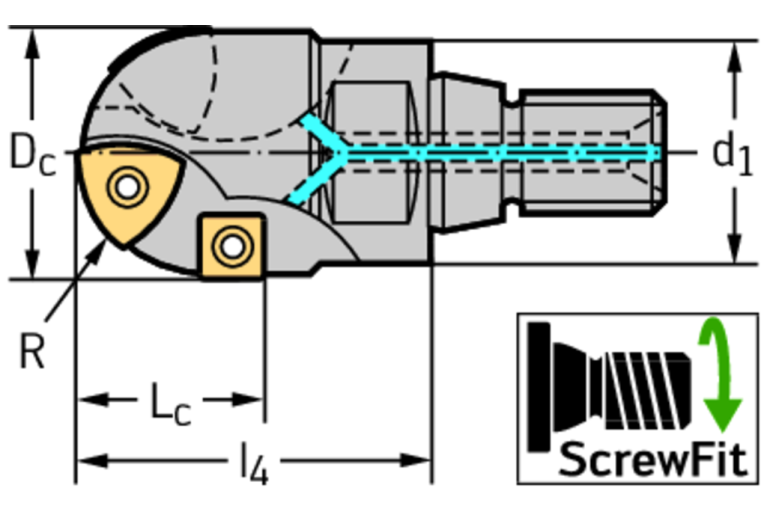

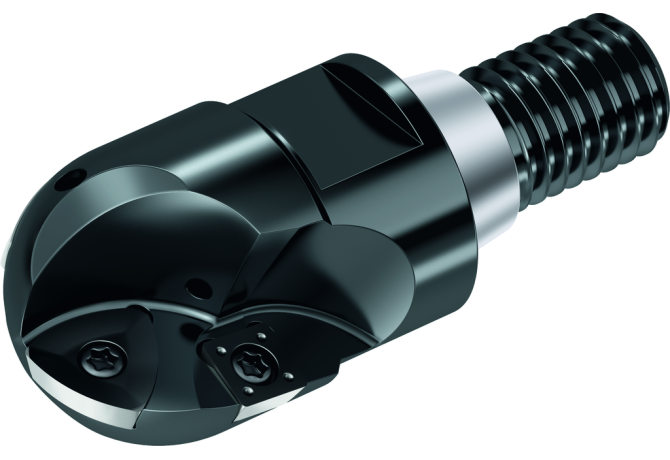

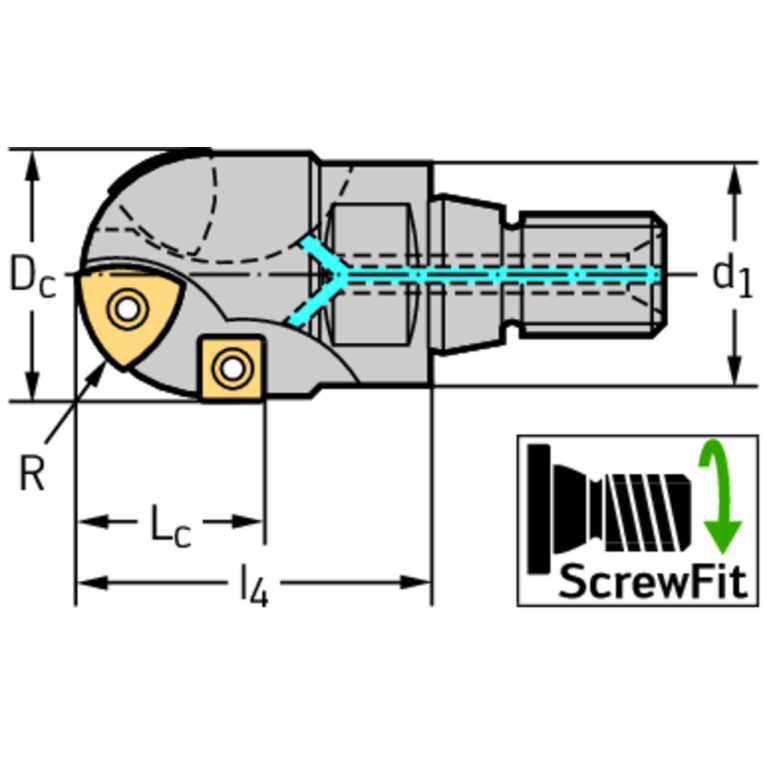

Главная Каталог продукции Toolunited 14 307-12 - Angular ball-nosed end mill F2239.UT28.031.Z01.24

F2239.UT28.031.Z01.24

F2239.UT28.031.Z01.24 F2239.UT28.031.Z01.24 F2239.UT28.031.Z01.24

F2239.UT28.031.Z01.24

Walter
Артикул: 5050713
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
24 mm
BD Body diameter
28 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
31.75 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SAW02800185
FamilyProducts
Copy milling cutters F2239
HAND Cutting direction
R - Right
ID Technical product number
5050713
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
SAW01C0280$$$$
ISYC Subclass
307-12 - Angular ball-nosed end mill
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0280
LOC-03 DCONMS Diameter
28 mm
LOC-03 ISO
SAW01C0280$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW02800185
LPR Protruding length
40 mm
LU Usable length
39.2684 mm
MILTTY Mill tool type ISO
L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°
Name Identifying order number
F2239.UT28.031.Z01.24
OAL Overall length
69 mm
RPMX Rotational speed maximum
16900 1/min
Working process
FFO - Die milling
WT Weight of item
0.177 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
