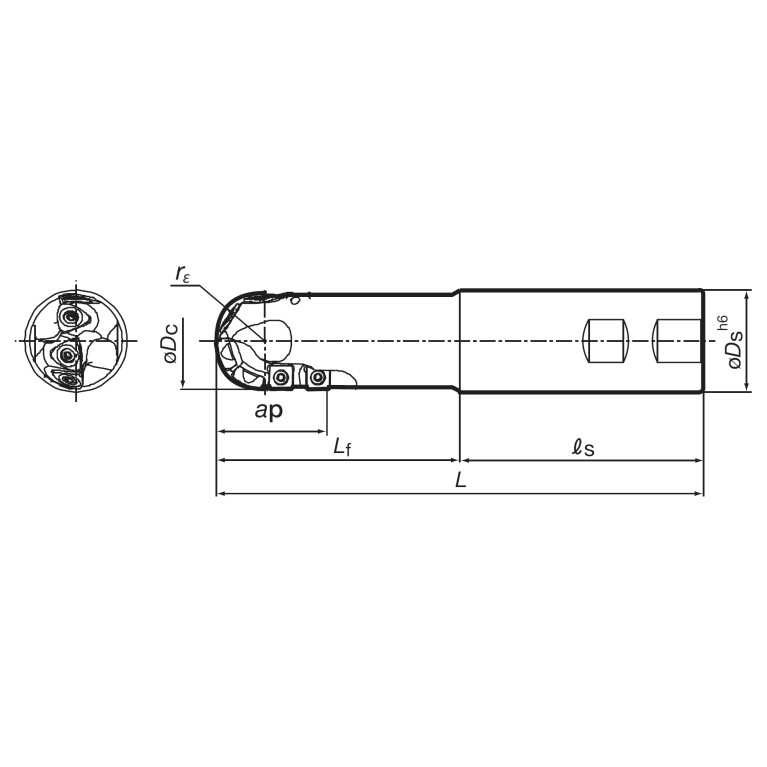

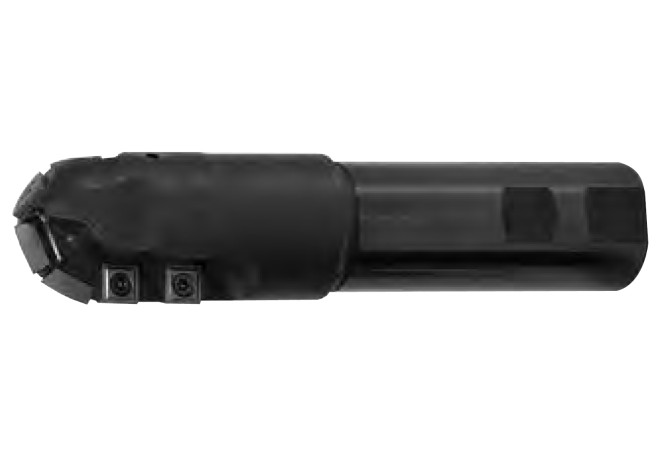

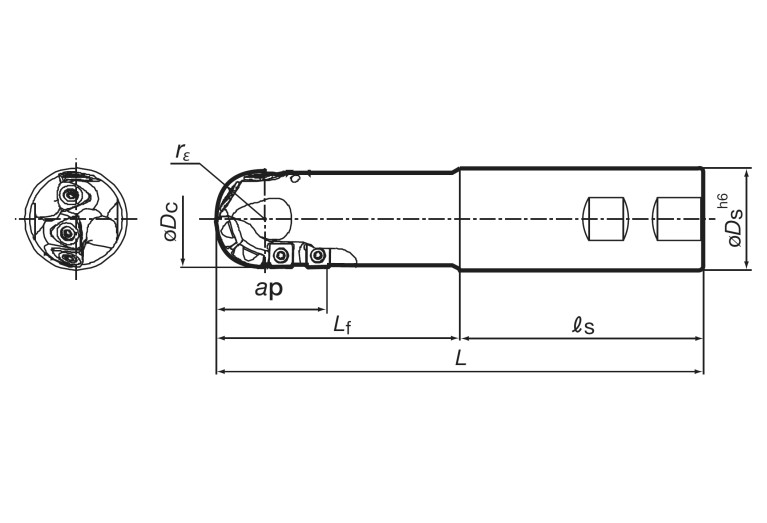

Главная Каталог продукции Toolunited 14 307-12 - Angular ball-nosed end mill EBD040SDE-E

EBD040SDE-E

EBD040SDE-E EBD040SDE-E EBD040SDE-E

EBD040SDE-E

Tungaloy
Артикул: EBD040SDE-E
В наличии
В корзину
Описание
Характеристики
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
15 Degree
A2B Clearance angle major Pos. B
11 Degree
APMX Depth of cut maximum
45 mm
B1B Cutting edge length Pos. B
9.52 mm
B2B Insert width Pos. B
9.52 mm
B3B Inscribed circle diameter Pos. B
9.52 mm
BLDA Tool style code Position A
99
BLDB Tool style code Position B
2
C1B Insert thickness Pos. B
3.97 mm
CCONMS Connection count machine side
1
CICT Cutting item count
7
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
TT - Tungaloy
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
5/12/2013
DIN
ZYL04001005
FamilyProducts
TAC-Kugelkopffräser EBD
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-12 - Angular ball-nosed end mill
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SCMT09T308-23
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SC09T3083N
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001005
LPR Protruding length
100 mm
LS Shank length
70 mm
Name Identifying order number
EBD040SDE-E
OAL Overall length
170 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FFO - Die milling
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
