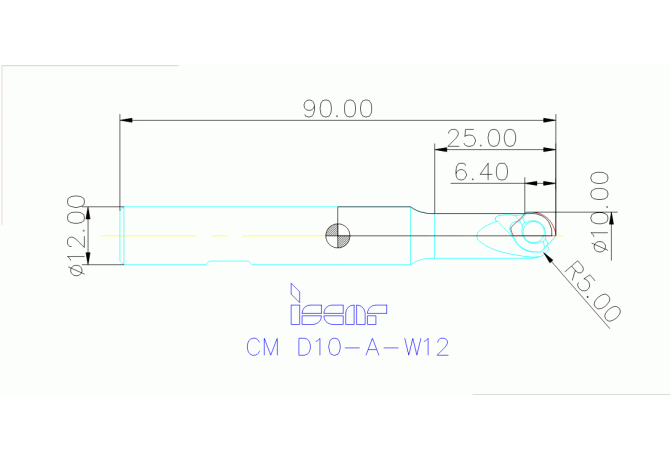

CM D10-A-W12
CM D10-A-W12
Артикул:
3100554
В наличии
Характеристики
APMX Depth of cut maximum
6.4 mm
BI Block index
1
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
ZYL01201005
FamilyProducts
CM D10-A-W12
HAND Cutting direction
R - Right
ID Technical product number
3100554
Interface codes
J6 /
ISYC Subclass
307-12 - Angular ball-nosed end mill
LOC-01 BI Block index
1
LOC-01 PRFRAD Profile radius
5 mm
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01201005
LU Usable length
25 mm
Name Identifying order number
CM D10-A-W12
OAL Overall length
90 mm
PRFRAD Profile radius
5 mm
Working process
No working processes available
WT Weight of item
0.07 kg
