Главная Каталог продукции Toolunited 14 307-12 - Angular ball-nosed end mill BCM D25-M12

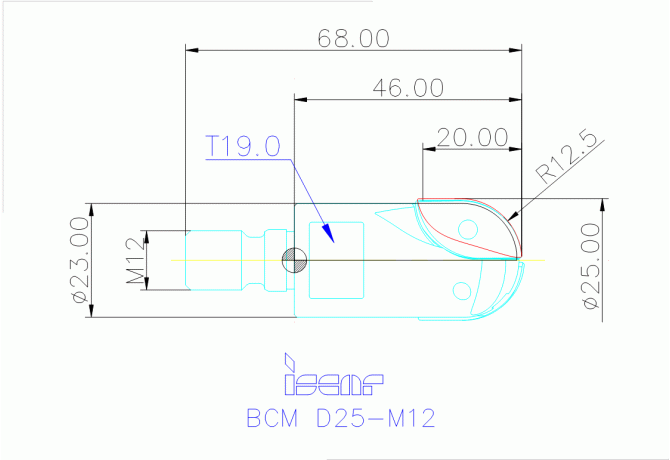

BCM D25-M12

Артикул: 3105390

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

20 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

25 mm

DIN

SAI01200285

FamilyProducts

Ball Nose Endmills with FLEXFIT Threaded Adaptation Carrying Tangent Straight Edge Inserts for Finish Profiling

HAND Cutting direction

R - Right

ID Technical product number

3105390

Interface codes

J6 / J61

ISO

SAI02C0120$$$$

ISYC Subclass

307-12 - Angular ball-nosed end mill

LOC-02 BI Block index

LOC-02 MIID Master insert identification

BCR D250-QT

LOC-02 ISO

IS$$48155249452856

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-48155249452856

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

23 mm

LOC-03 ISO

SAI02C0120$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01200285

Name Identifying order number

BCM D25-M12

OAL Overall length

68 mm

THSZMS Connection thread nominal size machine side

M12

Working process

No working processes available

WT Weight of item

0.12 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
