Главная Каталог продукции Toolunited 14 307-12 - Angular ball-nosed end mill BCM D12-MMT08

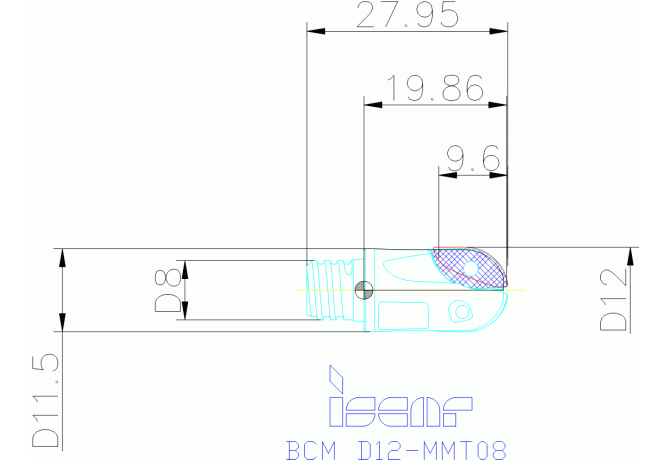

BCM D12-MMT08

Артикул: 3104288

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

9.6 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

12 mm

DIN

SAI00800185

FamilyProducts

Ball Nose Endmills with MULTI-MASTER Threaded Adaptation Carrying Tangent Straight Edge Inserts for Finish Profiling

HAND Cutting direction

R - Right

ID Technical product number

3104288

Interface codes

J6 / J61

ISO

SAI01C0080$$$$

ISYC Subclass

307-12 - Angular ball-nosed end mill

LOC-02 BI Block index

LOC-02 MIID Master insert identification

BCR D120-QT

LOC-02 ISO

IS$$38535495133030

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-38535495133030

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

11.5 mm

LOC-03 ISO

SAI01C0080$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00800185

Name Identifying order number

BCM D12-MMT08

OAL Overall length

28 mm

THSZMS Connection thread nominal size machine side

T08

Working process

No working processes available

WT Weight of item

0.01 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
