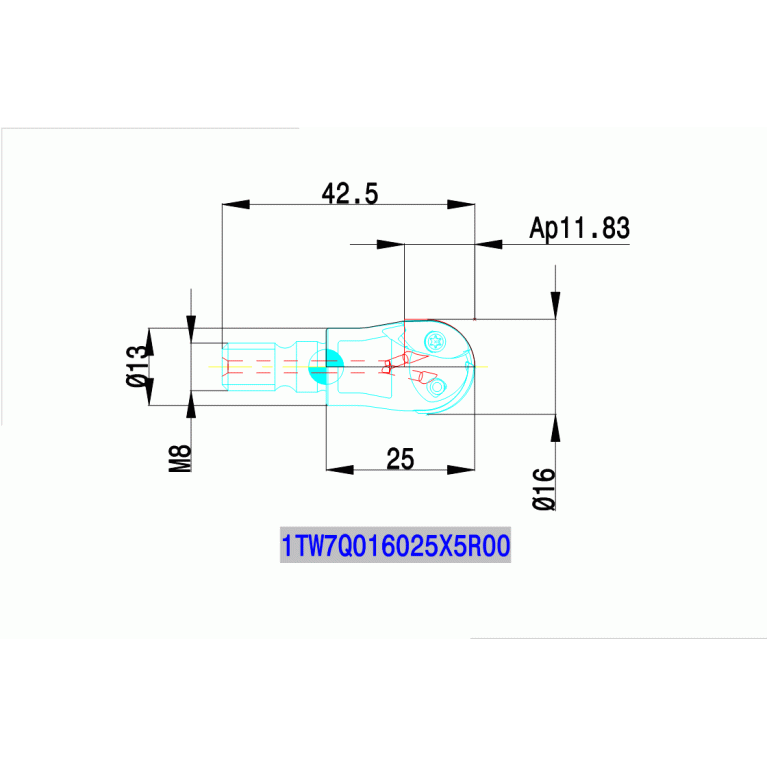

Главная Каталог продукции Toolunited 14 307-12 - Angular ball-nosed end mill 1TW7Q016025X5R00

1TW7Q016025X5R00

Артикул: 3113362

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

BLDB Tool style code Position B

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LL - Stock limited

DIN

MOD00800115

DN Neck diameter

13 mm

FamilyProducts

Copy End Mill 1TW...X

HAND Cutting direction

R - Right

ID Technical product number

3113362

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISYC Subclass

307-12 - Angular ball-nosed end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MOD

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MOD00800115

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

1TW7Q016025X5R00

OAL Overall length

42.8 mm

Working process

No working processes available

WT Weight of item

0.02 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
