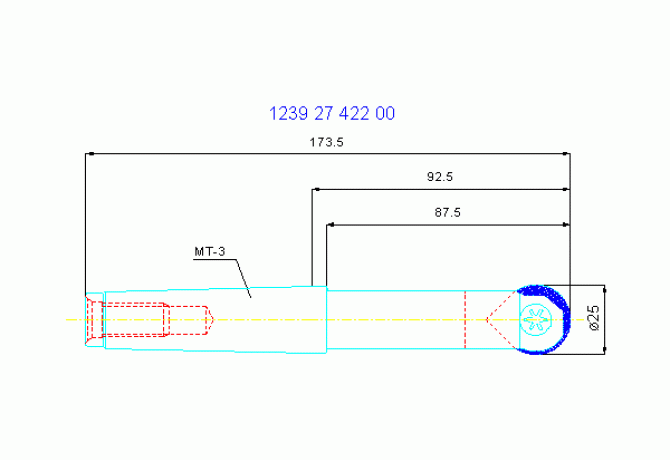

Главная Каталог продукции Toolunited 14 307-12 - Angular ball-nosed end mill 12392742200

12392742200

Артикул: 12392742200

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

WI - Widia

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

25 mm

Delivery state valid from

141.4 €

DIN

MKG00301085

FamilyProducts

M 27 Ball nose end mill

HAND Cutting direction

R - Right

ID Technical product number

12392742200

Interface codes

J6 /

ISYC Subclass

307-12 - Angular ball-nosed end mill

LF Functional length

87.5 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

MKG Morse taper

LOC-03 CCUMS Unit base

8 non-dimensional size

LOC-03 CZCMS Size code

0030

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00301085

LPR Protruding length

87.5 mm

MILTTY Mill tool type ISO

K - Ball nose milling cutter (one or more then one indexable insert pro cutting edge)

Name Identifying order number

12392742200

OAL Overall length

175 mm

Working process

FRU - Round moulding
