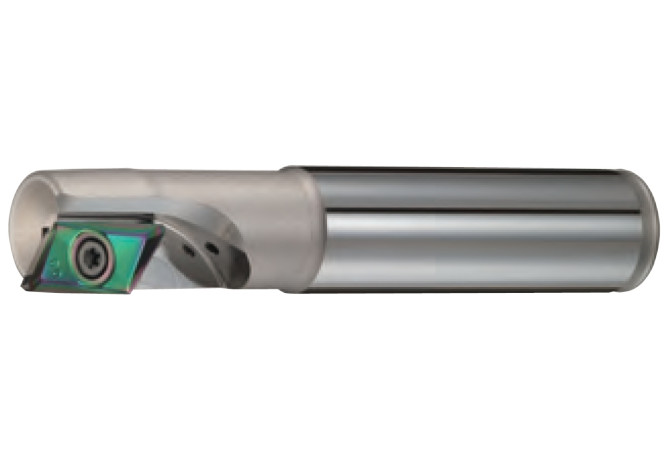

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill WAX4025E-4.0

WAX4025E-4.0

WAX4025E-4.0 WAX4025E-4.0 WAX4025E-4.0

WAX4025E-4.0

Sumitomo
Артикул: WAX4025E-4.0
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
2
CICT Cutting item count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

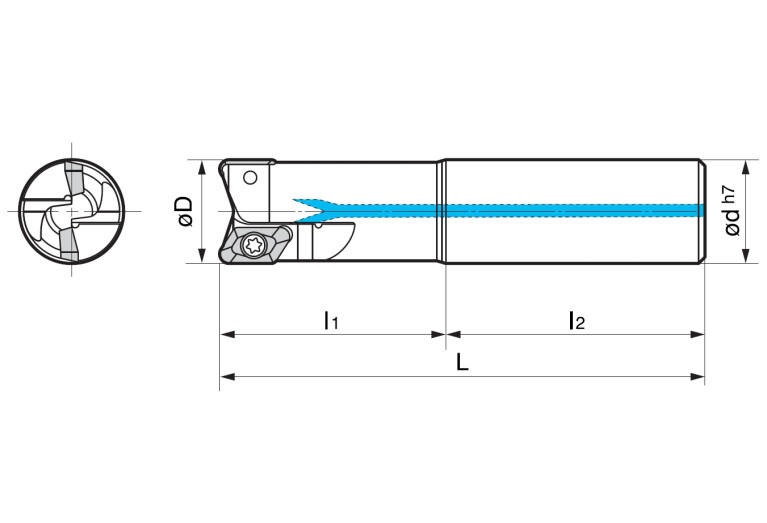

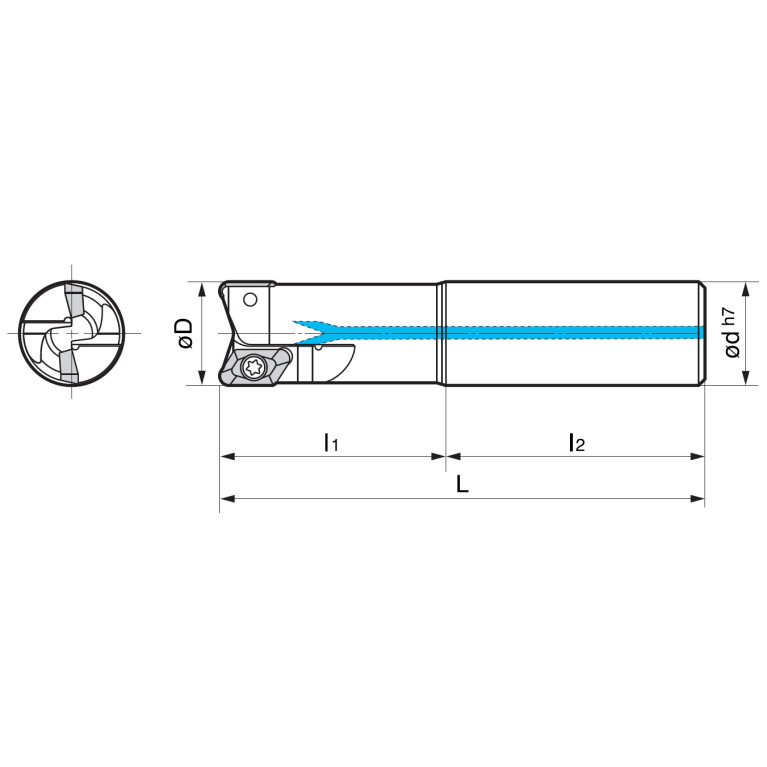

DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/3/2012
DIN
ZYL02500115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
1
FamilyProducts
WAX40000E endmill with shank, 4mm corner radius
ID Technical product number
WAX4025E-4.0
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
140 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500115
LPR Protruding length
60 mm
LS Shank length
80 mm
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
WAX4025E-4.0
OAL Overall length
140 mm
RMPX Ramping angle maximum
6 Degree
RPMX Rotational speed maximum
11000 1/min
Working process
FEC - Square shoulder milling
WT Weight of item
0.41 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
