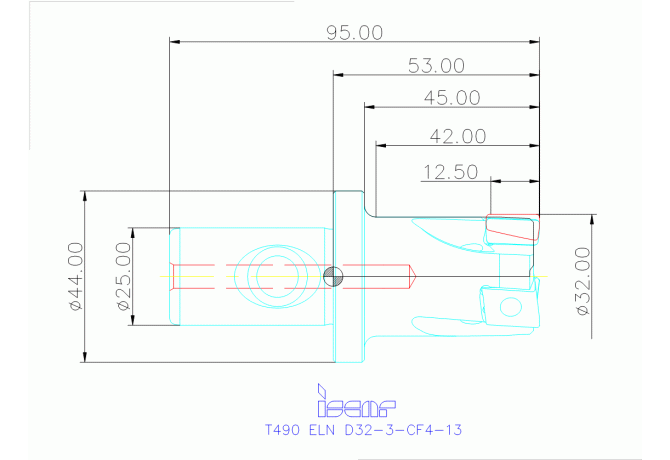

T490 ELN D32-3-CF4-13

Артикул: 3105291

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

12.5 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

DIN

ICF02500195

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

90° Endmills Carrying Tangentially Clamped Inserts with 4 Helical, 12.5 mm Long Cutting Edges with a CLICKFIT Adaptation

HAND Cutting direction

R - Right

ID Technical product number

3105291

Interface codes

J6 / J61

ISO

ICF01C0250$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LH Head length

45 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ICF Iscar ClickFit

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

44 mm

LOC-03 ISO

ICF01C0250$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ICF02500195

LU Usable length

42 mm

Name Identifying order number

T490 ELN D32-3-CF4-13

OAL Overall length

95 mm

RMPX Ramping angle maximum

2.8 Degree

Working process

No working processes available

WT Weight of item

0.44 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
