Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill T490 ELN D16-2-W16-08

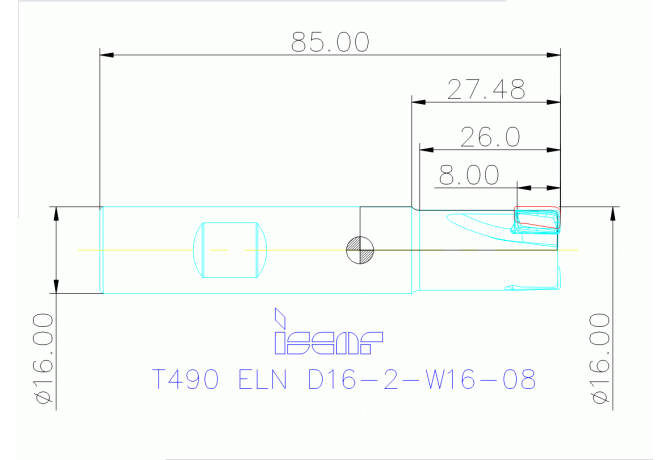

T490 ELN D16-2-W16-08

Артикул: 3105592

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

8 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL01601005

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

90° Endmills Carrying Tangentially Clamped Inserts with 4 Helical, 8 mm Long Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3105592

Interface codes

J6 / J61

ISO

ZYL10G1600h$06

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LH Head length

28 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601005

LU Usable length

26 mm

Name Identifying order number

T490 ELN D16-2-W16-08

OAL Overall length

85 mm

RMPX Ramping angle maximum

2 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.12 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
