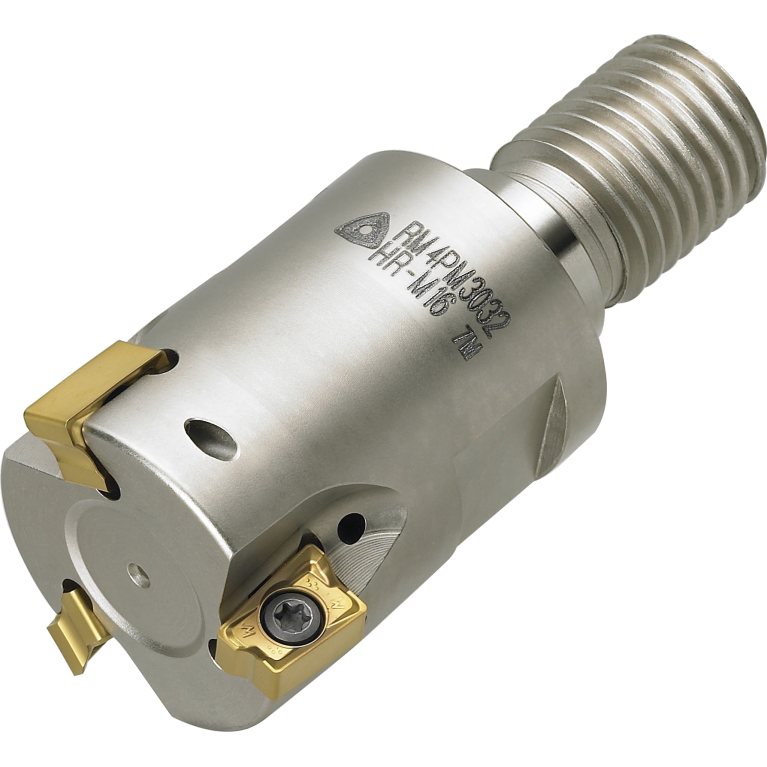

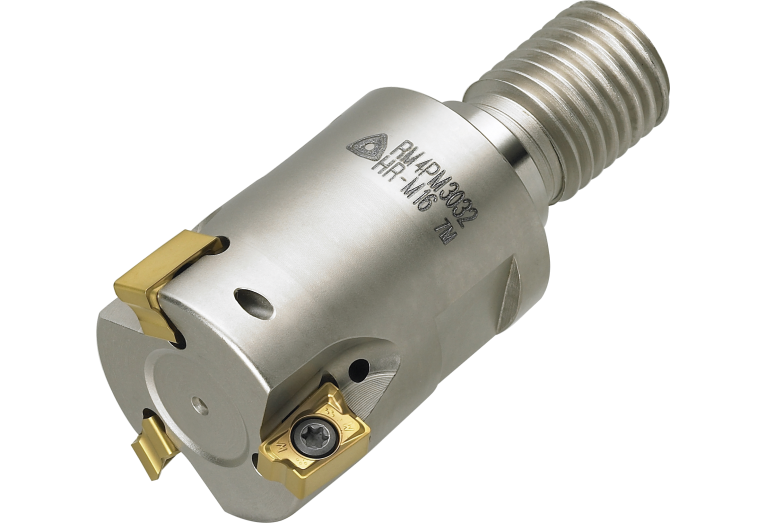

RM4PM3032HR-M16

RM4PM3032HR-M16 RM4PM3032HR-M16 RM4PM3032HR-M16

RM4PM3032HR-M16

Korloy
Артикул: 1-06-016540
В наличии
В корзину
Описание
Характеристики

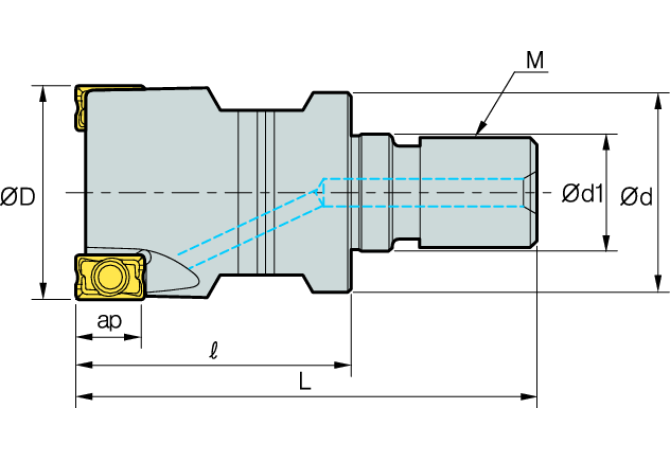

APMX Depth of cut maximum
9 mm
BD Body diameter
28 mm
CCONMS Connection count machine side
1
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
SAK01600115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
RM4PM
GAMF Rake angle radial
-39 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
1-06-016540
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAK Screw mounting KOMET
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
17 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAK01600115
LPR Protruding length
40 mm
Name Identifying order number
RM4PM3032HR-M16
OAL Overall length
67 mm
THSZMS Connection thread nominal size machine side
M16
Working process
No working processes available
WT Weight of item
0.21 kg
ZEFP Peripheral effective cutting edge count
3
