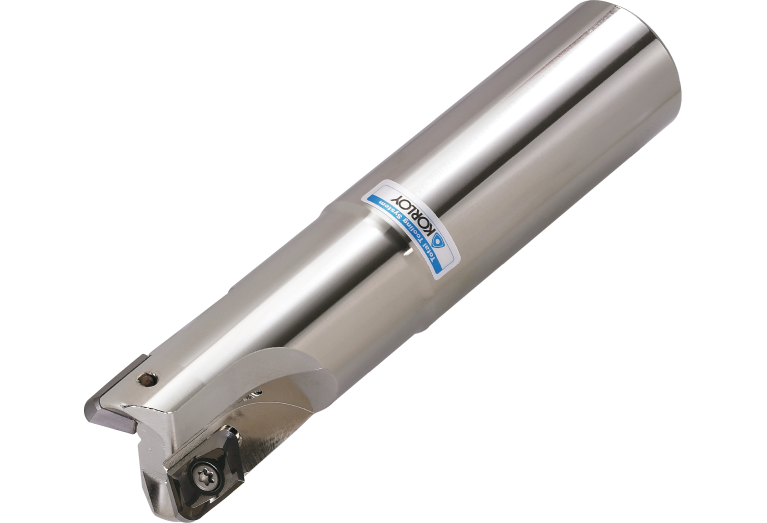

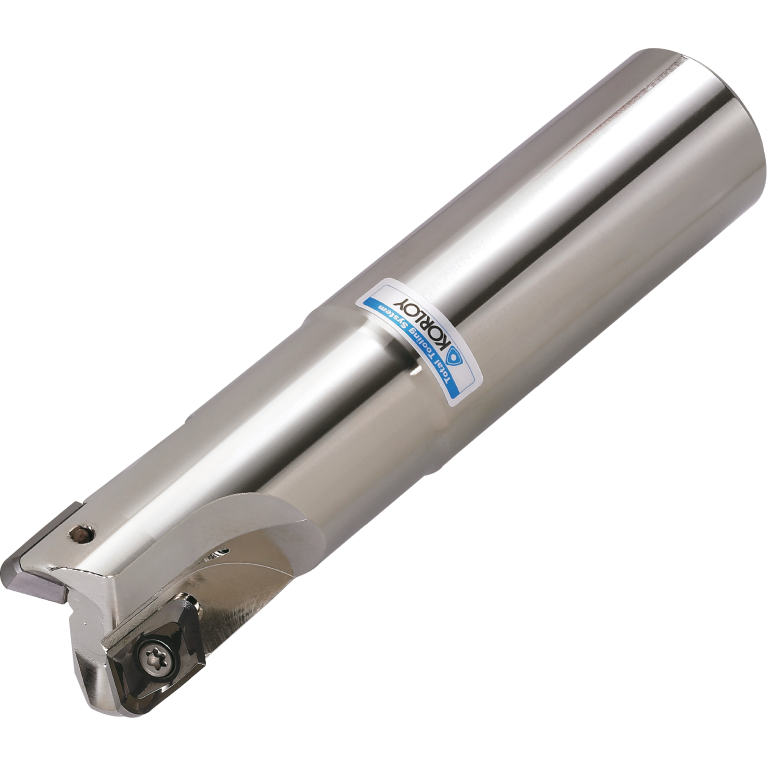

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill PAXS6040HR-B-S40

PAXS6040HR-B-S40

PAXS6040HR-B-S40 PAXS6040HR-B-S40 PAXS6040HR-B-S40

PAXS6040HR-B-S40

Korloy
Артикул: PAXS6040HR-B-S40
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
20 Degree
APMX Depth of cut maximum
23 mm
BLDA Tool style code Position A
5
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
4 mm

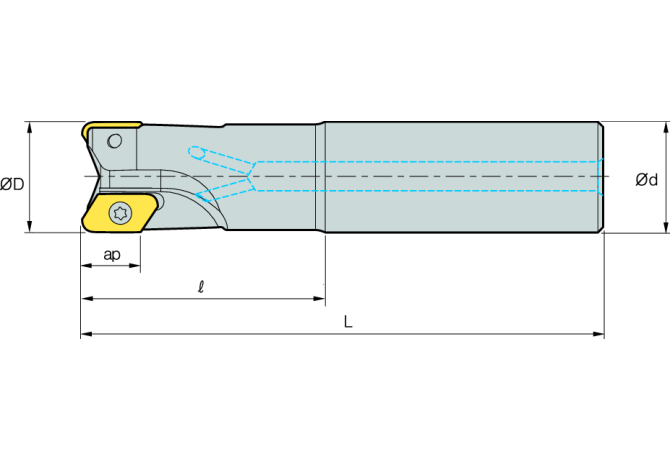

DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
ZYL04000115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
PAXS6000
GAMF Rake angle radial
-14 Degree
GAMP Rake angle axial
5 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
160 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04000115
LPR Protruding length
70 mm
Name Identifying order number
PAXS6040HR-B-S40
OAL Overall length
160 mm
RPMX Rotational speed maximum
25800 1/min
Working process
No working processes available
WT Weight of item
1.2 kg
ZEFP Peripheral effective cutting edge count
2
