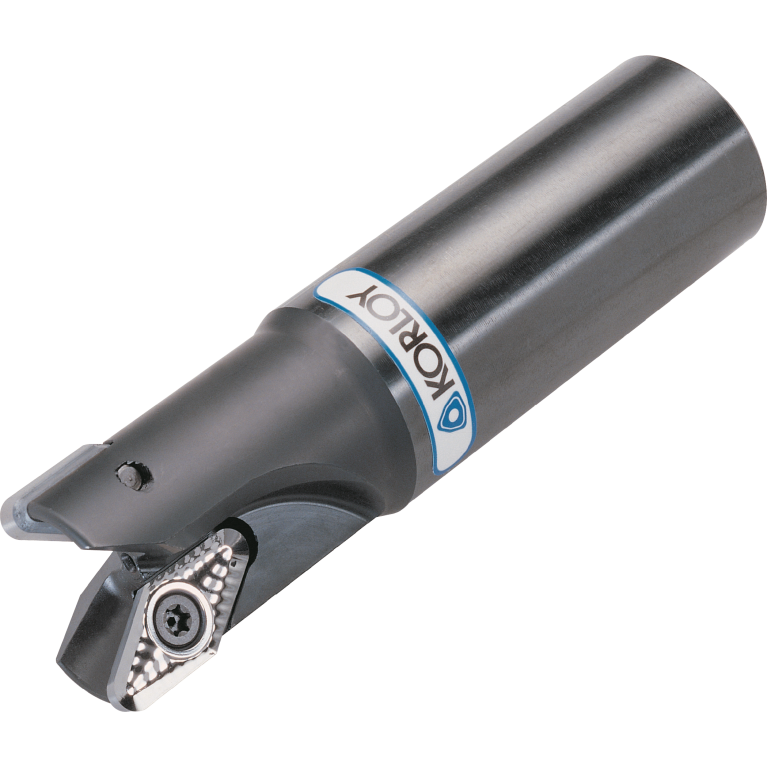

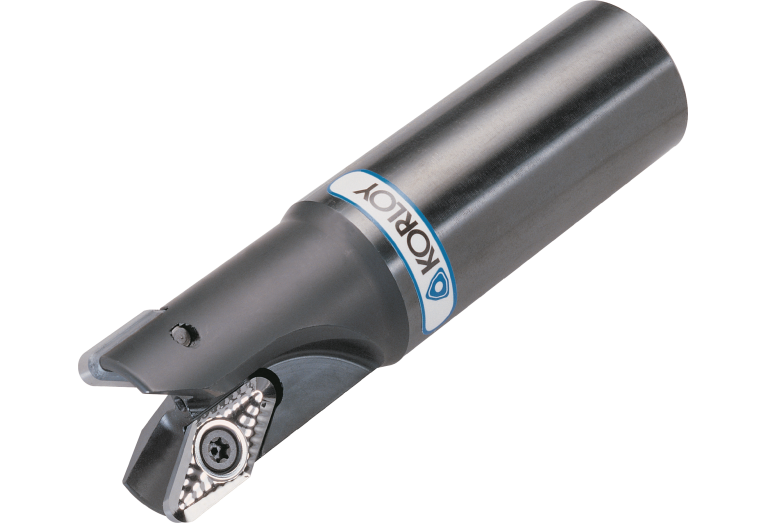

PAS2042HR

PAS2042HR PAS2042HR PAS2042HR

PAS2042HR

Korloy
Артикул: 1-06-040600
В наличии
В корзину
Описание
Характеристики

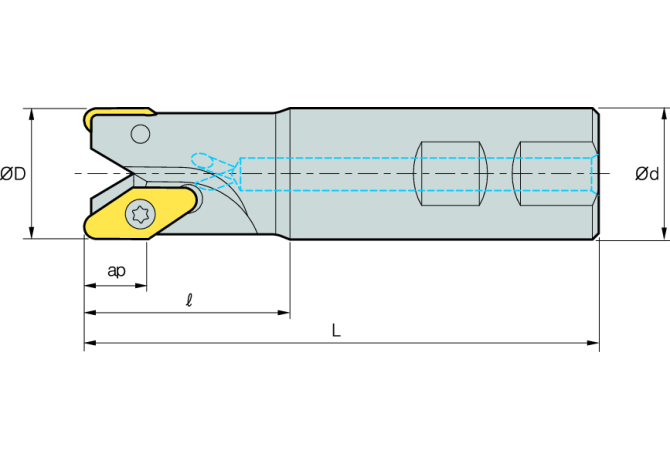

APMX Depth of cut maximum
8 mm
CCONMS Connection count machine side
1
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
42 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
ZYL03201015
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
PAS2000/4000
GAMF Rake angle radial
-21 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
1-06-040600
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201015
LPR Protruding length
42 mm
Name Identifying order number
PAS2042HR
OAL Overall length
130 mm
Working process
No working processes available
WT Weight of item
0.84 kg
ZEFP Peripheral effective cutting edge count
5
