Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill PALS032HR-2S25

PALS032HR-2S25

PALS032HR-2S25 PALS032HR-2S25 PALS032HR-2S25

PALS032HR-2S25

Korloy
Артикул: 1-06-043918
В наличии
В корзину
Описание
Характеристики

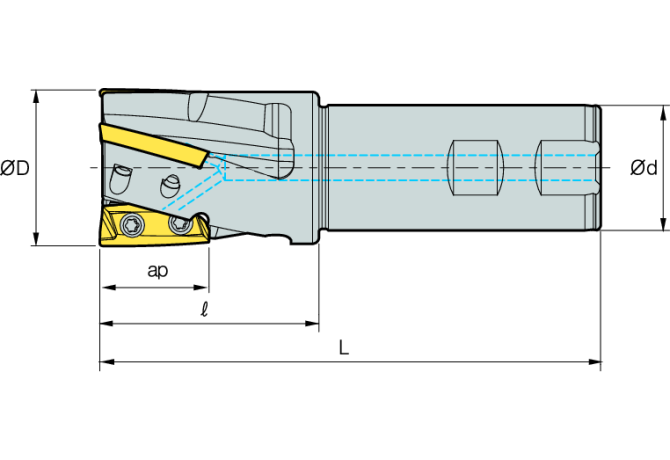

APMX Depth of cut maximum
25 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
ZYL02501005
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
PALS (Single Edge)
GAMF Rake angle radial
-5 Degree
GAMP Rake angle axial
12 Degree
HAND Cutting direction
R - Right
ID Technical product number
1-06-043918
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501005
LPR Protruding length
50 mm
Name Identifying order number
PALS032HR-2S25
OAL Overall length
140 mm
Working process
No working processes available
WT Weight of item
0.48 kg
ZEFP Peripheral effective cutting edge count
2
