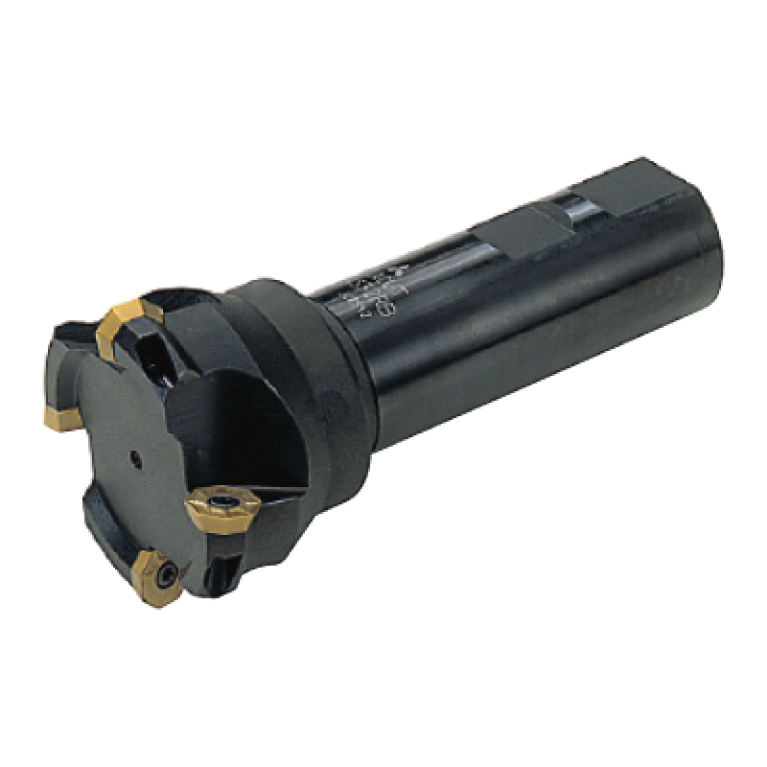

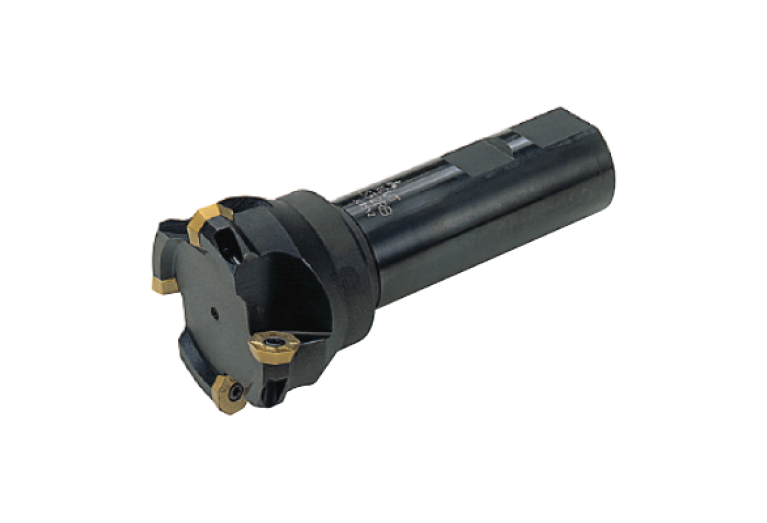

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill OCTACUT503S32R

OCTACUT503S32R

Артикул: OCTACUT503S32R

В наличии

В корзину

Описание

Характеристики

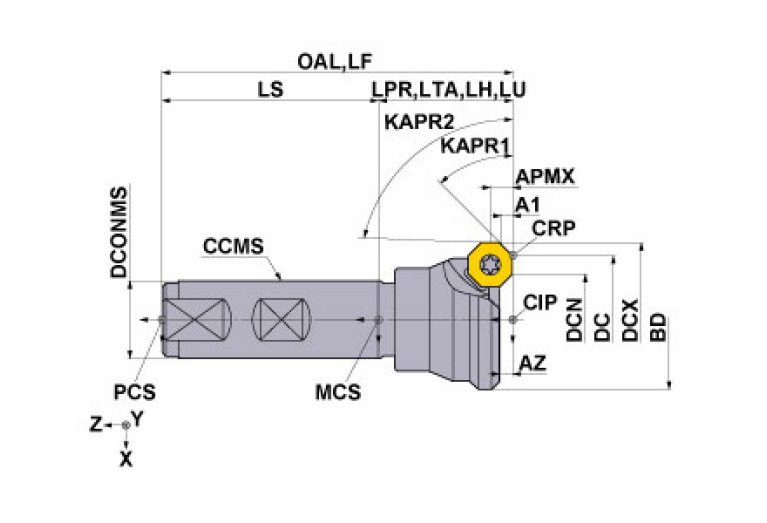

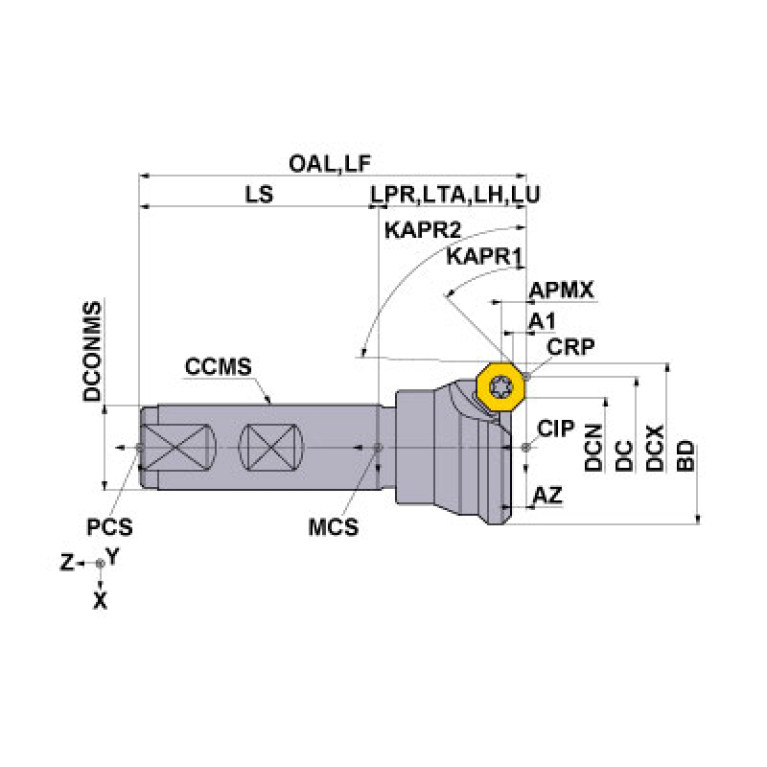

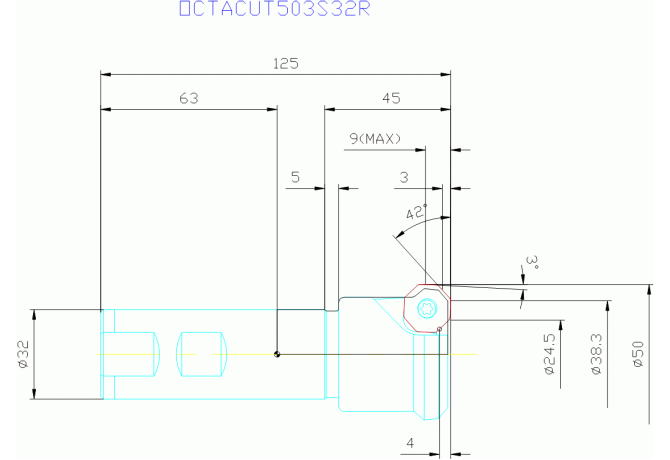

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

9 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL03201005

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

ENDMILL

GAMF Rake angle radial

13 Degree

GAMP Rake angle axial

-4 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

42 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201005

LPR Protruding length

45 mm

Name Identifying order number

OCTACUT503S32R

OAL Overall length

125 mm

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling,FZI - Circular milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
