MSX06025EM24

MSX06025EM24

Sumitomo
Артикул: MSX06025EM24
В наличии
В корзину
Характеристики
A2A Clearance angle major Pos. A
15 Degree
AZ Plunge depth maximum
1 mm
B3A Inscribed circle diameter Pos. A
6.35 mm
CCONMS Connection count machine side
2
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

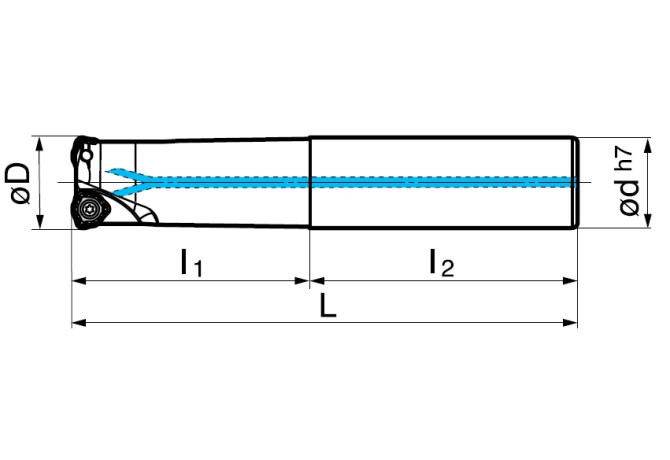

DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/14/2010
DIN
ZYL02400115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
METAL SLASH MILL Typ MSX
HAND Cutting direction
R - Right
ID Technical product number
MSX06025EM24
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LF Functional length
250 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0240
LOC-03 DCONMS Diameter
24 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02400115
LPR Protruding length
60 mm
LS Shank length
190 mm
LU Usable length
60 mm
Name Identifying order number
MSX06025EM24
OAL Overall length
250 mm
RMPX Ramping angle maximum
3 Degree
Working process
FNU - Groove milling,FPL - Face milling,FZI - Circular milling
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
