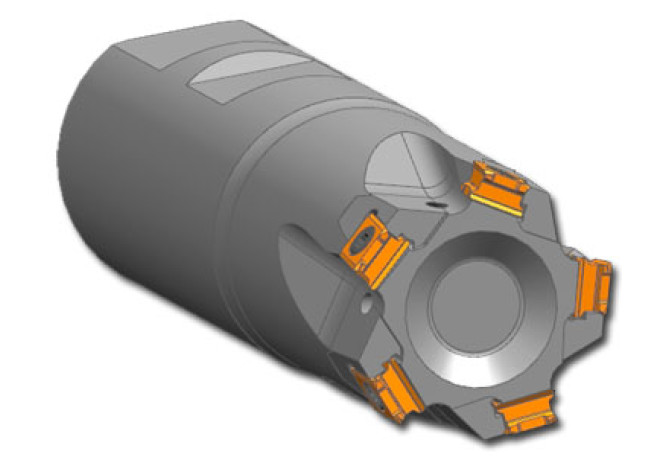

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill M406.040.D32.6.06B

M406.040.D32.6.06B

M406.040.D32.6.06B M406.040.D32.6.06B

M406.040.D32.6.06B

Paul Horn
Артикул: M406040D32606B
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
6.3 mm
BD Body diameter
39 mm
BLDA Tool style code Position A
99
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CICT Cutting item count
6
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HORN - Paul Horn
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/30/2015
DIN
ZYL03201015
DN Neck diameter
39 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
SCREW-IN CUTTER Type M406
GAMF Rake angle radial
10 Degree
GAMP Rake angle axial
1 Degree
HAND Cutting direction
R - Right
ID Technical product number
M406040D32606B
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201015
LS Shank length
60 mm
Name Identifying order number
M406.040.D32.6.06B
OAL Overall length
111 mm
RPMX Rotational speed maximum
15000 1/min
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling,FPL - Face milling
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
