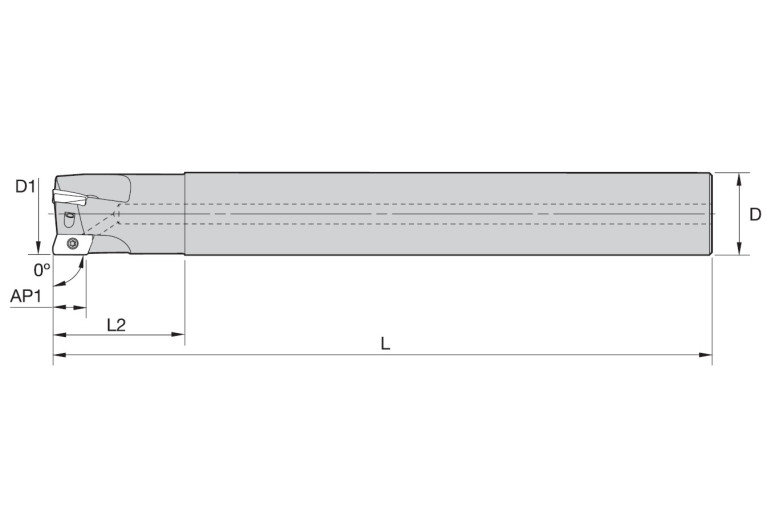

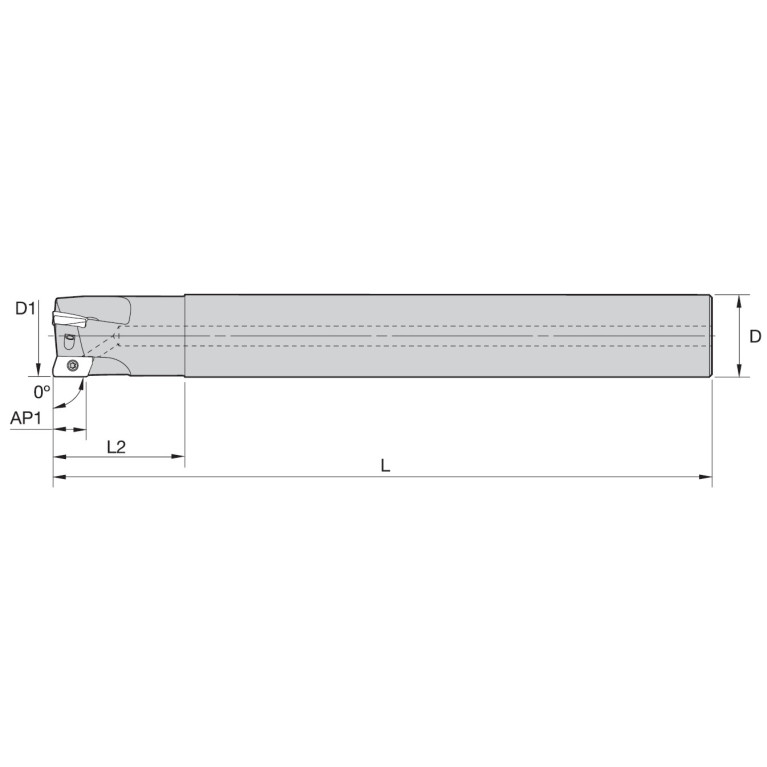

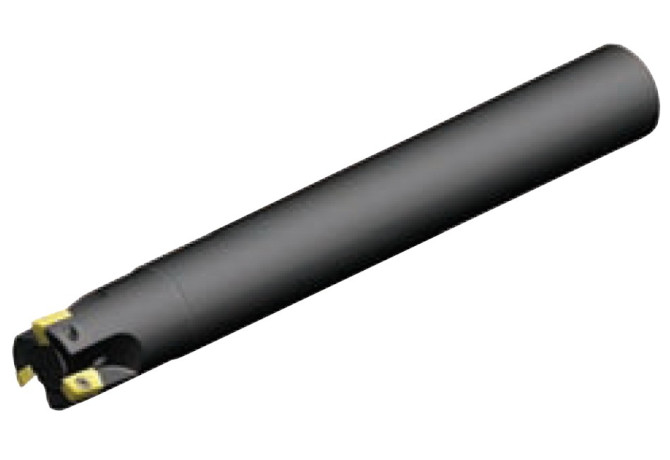

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill M1D075E1002C075L670

M1D075E1002C075L670

M1D075E1002C075L670 M1D075E1002C075L670 M1D075E1002C075L670

M1D075E1002C075L670

Kennametal
Артикул: 3742538
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
10.1092 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
19.05 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/1/2008
DIN
ZYL07500135
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
End Mills - Cylindrical Shank - Long Length - Inch
HAND Cutting direction
R - Right
ID Technical product number
3742538
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LF Functional length
170.18 mm
LH Head length
31.75 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0750
LOC-03 DCONMS Diameter
19.05 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07500135
Name Identifying order number
M1D075E1002C075L670
OAL Overall length
170.18 mm
RMPX Ramping angle maximum
6.5 Degree
RPMX Rotational speed maximum
45900 1/min
Working process
No working processes available
WT Weight of item
0.7 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
