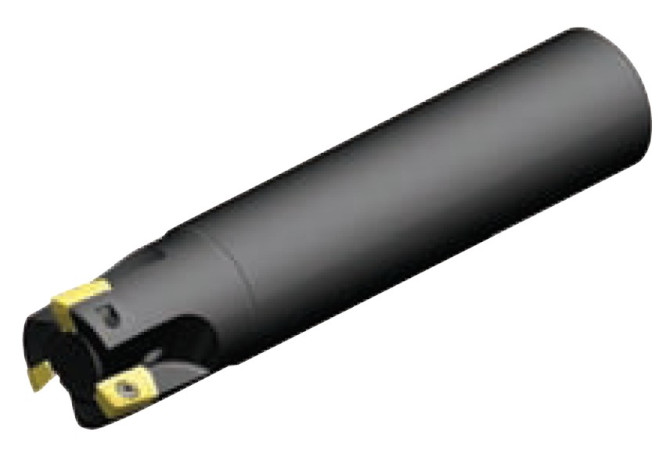

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill M1D050E1001C062L350

M1D050E1001C062L350

M1D050E1001C062L350 M1D050E1001C062L350 M1D050E1001C062L350

M1D050E1001C062L350

Kennametal
Артикул: 3742518
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
10.2616 mm
CCONMS Connection count machine side
1
CICT Cutting item count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
12.7 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
11/1/2008
DIN
ZYL06250135
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
1
FamilyProducts
End Mills - Cylindrical Shank - Normal Length
HAND Cutting direction
R - Right
ID Technical product number
3742518
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
88.9 mm
LH Head length
20.32 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0625
LOC-03 DCONMS Diameter
15.875 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL06250135
Name Identifying order number
M1D050E1001C062L350
OAL Overall length
88.9 mm
RMPX Ramping angle maximum
11.5 Degree
RPMX Rotational speed maximum
56500 1/min
Working process
No working processes available
WT Weight of item
0.25 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
