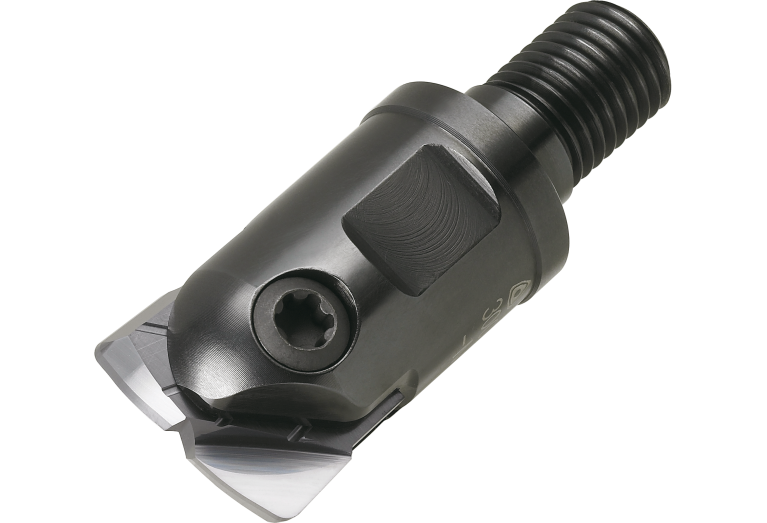

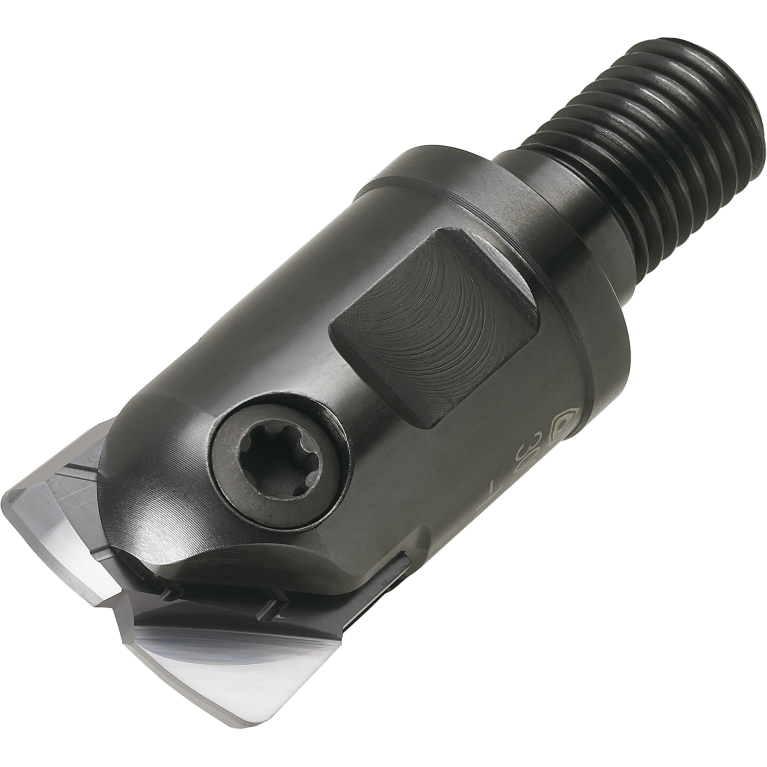

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill LBE120-MHD-M06

LBE120-MHD-M06

LBE120-MHD-M06 LBE120-MHD-M06 LBE120-MHD-M06

LBE120-MHD-M06

Korloy
Артикул: 1-06-009512
В наличии
В корзину
Описание
Характеристики
BD Body diameter
11 mm
BI Block index
1
CCONMS Connection count machine side
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
12 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
SAK00600115
F23 Number of mounting layers
1
FamilyProducts
LBE-MHD
HAND Cutting direction
R - Right
ID Technical product number
1-06-009512
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
LBH120
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
LBH130
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAK Screw mounting KOMET
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAK00600115
LPR Protruding length
25 mm
Name Identifying order number
LBE120-MHD-M06
OAL Overall length
40 mm
THSZMS Connection thread nominal size machine side
M06
Working process
No working processes available
