Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill ICM901-025-HA25-Z2R-BD_T17

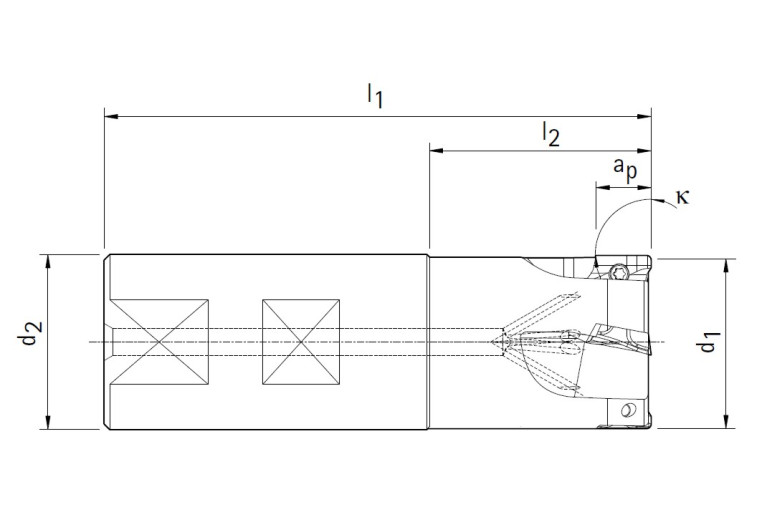

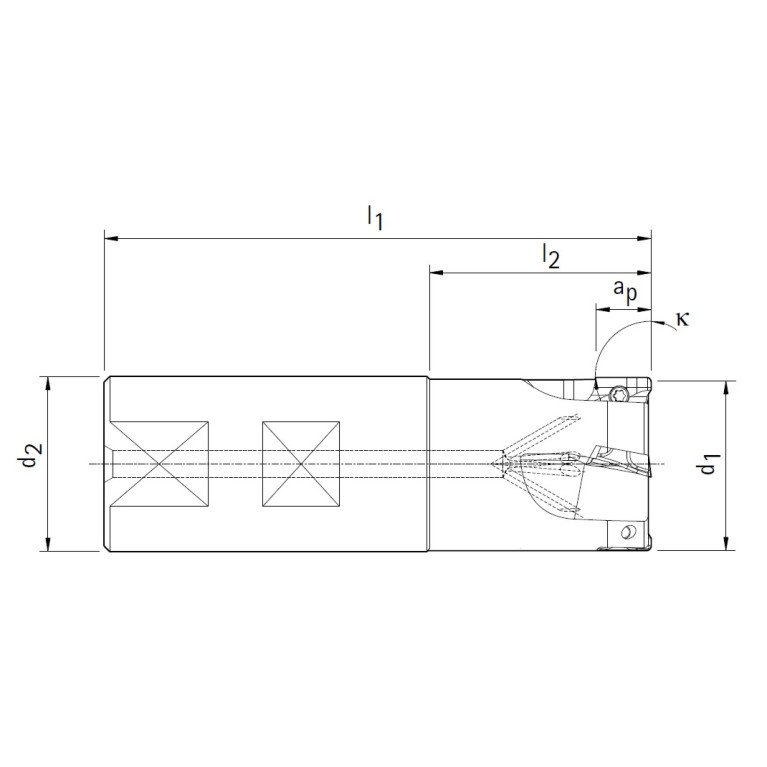

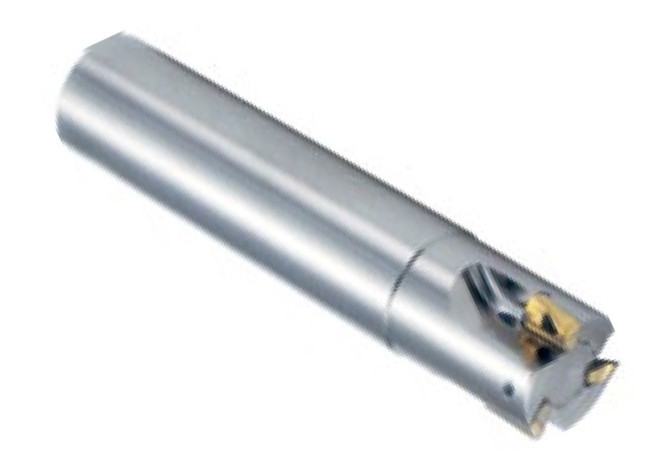

ICM901-025-HA25-Z2R-BD_T17

ICM901-025-HA25-Z2R-BD_T17 ICM901-025-HA25-Z2R-BD_T17 ICM901-025-HA25-Z2R-BD_T17

ICM901-025-HA25-Z2R-BD_T17

Mapal
Артикул: 30420068
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
82 Degree
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
14 mm
B1A Cutting edge length Pos. A
17 mm
B3A Inscribed circle diameter Pos. A
9.6 mm
BLDA Tool style code Position A
5
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
4.76 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MP - Mapal
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
8/1/2013
DIN
ZYL02500115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
End milling cutter ICM90-B2-Shank ? 90°
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
30420068
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
120 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500115
LPR Protruding length
36 mm
Name Identifying order number
ICM901-025-HA25-Z2R-BD T17
OAL Overall length
120 mm
RPMX Rotational speed maximum
35000 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling
WT Weight of item
0.4 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
