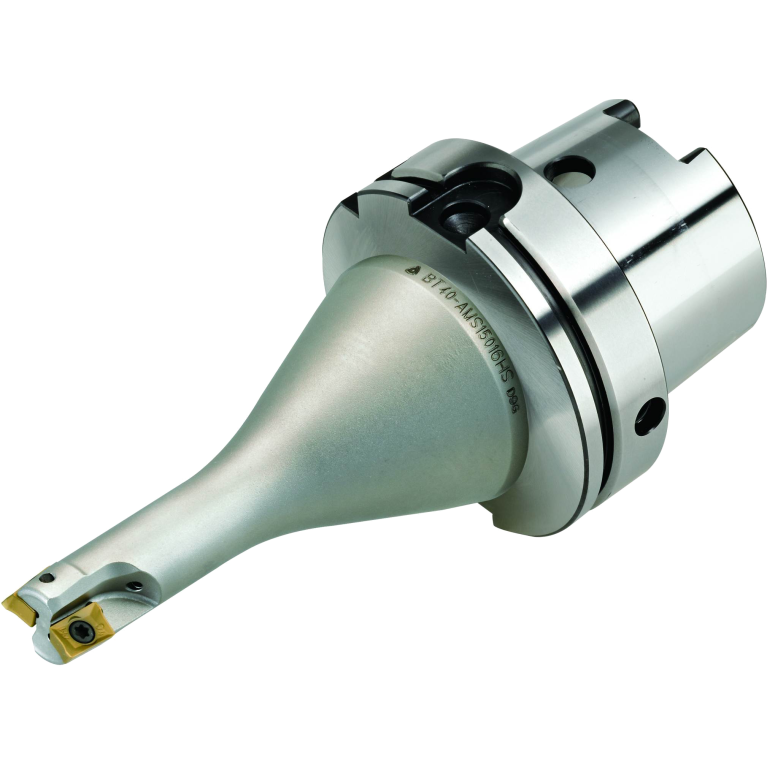

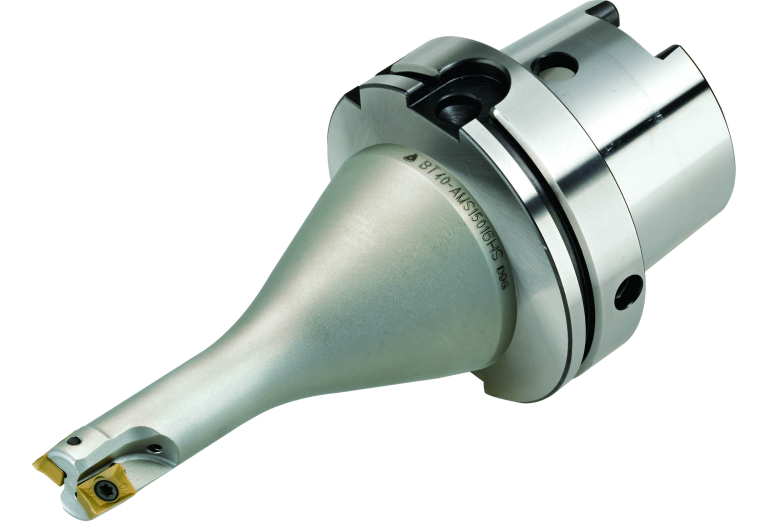

Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill HSK63A-AM15020HS-2

HSK63A-AM15020HS-2

HSK63A-AM15020HS-2 HSK63A-AM15020HS-2 HSK63A-AM15020HS-2

HSK63A-AM15020HS-2

Korloy
Артикул: 1-06-037507
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
85 Degree
APMX Depth of cut maximum
9 mm
BLDA Tool style code Position A
5
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

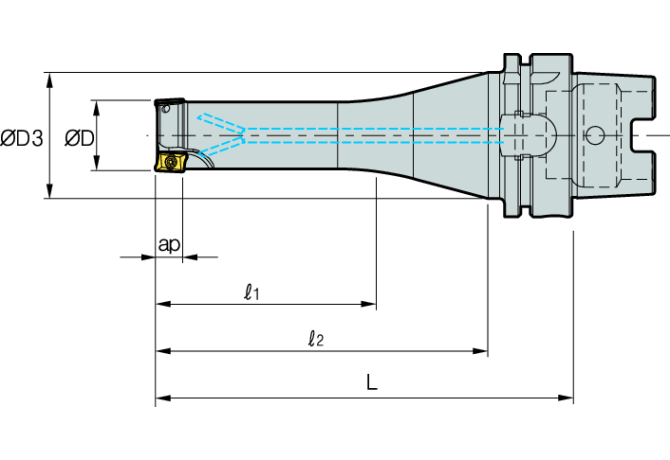

DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DIN
HSK06300195
DN Neck diameter
43 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
HSK63A AM1000HS/1500HS
GAMF Rake angle radial
-28 Degree
GAMP Rake angle axial
7.5 Degree
HAND Cutting direction
R - Right
ID Technical product number
1-06-037507
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
131 mm
LH Head length
98 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LPR Protruding length
131 mm
LU Usable length
60 mm
Name Identifying order number
HSK63A-AM15020HS-2
Working process
No working processes available
ZEFP Peripheral effective cutting edge count
2
