Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill HP E90AT-D50-3-W32-22

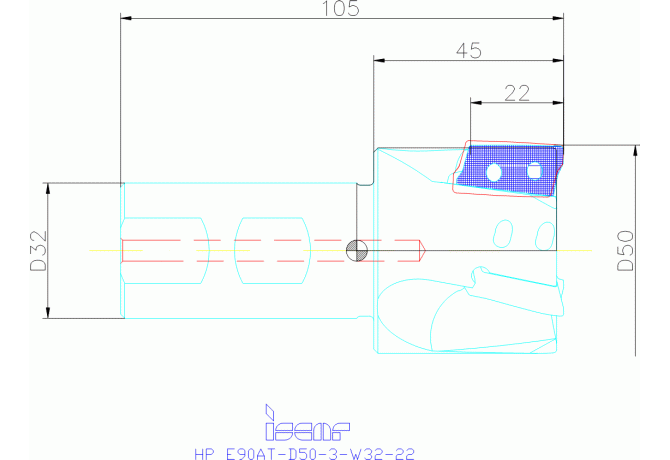

HP E90AT-D50-3-W32-22

HP E90AT-D50-3-W32-22 HP E90AT-D50-3-W32-22

HP E90AT-D50-3-W32-22

Iscar
Артикул: 3103108
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
22 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
7.5 mm
CCONMS Connection count machine side
2
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
1 mm
D4A Cutting edge angle major Pos. A
90 Degree
D6A Wiper edge length Pos. A
3.43 mm
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/2/2018
DIN
ZYL03201015
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
90\S\0 Endmills Carrying HP AD.. 2207.. Inserts
HAND Cutting direction
R - Right
ID Technical product number
3103108
Interface codes
J6 / J61
ISO
ZYL10G3200h$06
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL10G3200h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201015
LU Usable length
45 mm
Name Identifying order number
HP E90AT-D50-3-W32-22
OAL Overall length
105 mm
RMPX Ramping angle maximum
5 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.78 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
