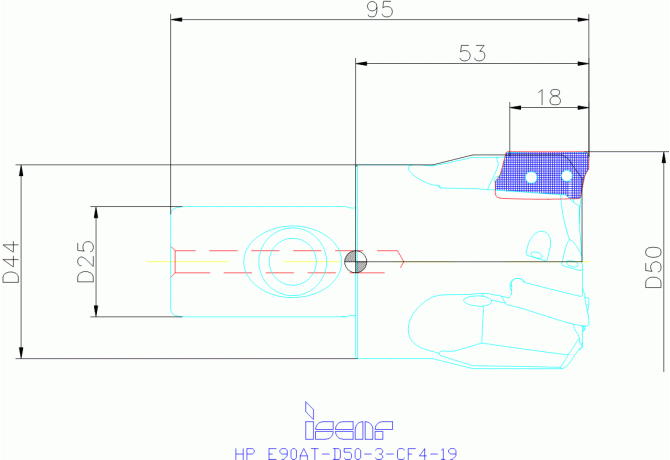

HP E90AT-D50-3-CF4-19

HP E90AT-D50-3-CF4-19

Iscar
Артикул: 3103809
В наличии
В корзину
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
18 mm
B1A Cutting edge length Pos. A
19.53 mm
BD Body diameter
44 mm
BLDA Tool style code Position A
4
C1A Insert thickness Pos. A
7.4 mm
CCONMS Connection count machine side
1
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.4 mm
D4A Cutting edge angle major Pos. A
90 Degree
D6A Wiper edge length Pos. A
3.5 mm
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/1/2012
DIN
ICF00400115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
HP E90AT-D50-3-CF4-19
HAND Cutting direction
R - Right
ID Technical product number
3103809
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ICF Iscar ClickFit
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0040
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ICF00400115
Name Identifying order number
HP E90AT-D50-3-CF4-19
RMPX Ramping angle maximum
4 Degree
Working process
FEC - Square shoulder milling
WT Weight of item
0.77 kg
ZEFP Peripheral effective cutting edge count
3
