Главная Каталог продукции Toolunited 14 307-01 - Non-centre cutting single row end mill HP E90AN-D32-6-W25-07

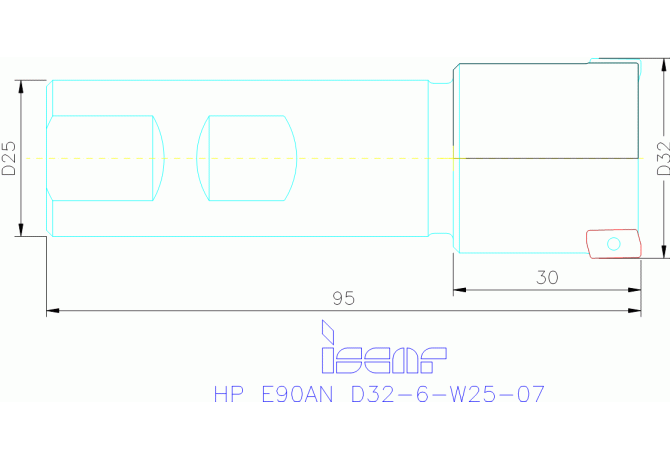

HP E90AN-D32-6-W25-07

HP E90AN-D32-6-W25-07

HP E90AN-D32-6-W25-07

HP E90AN-D32-6-W25-07

HP E90AN-D32-6-W25-07

Iscar

Артикул: 3103890

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

APMX Depth of cut maximum

7.7 mm

B1A Cutting edge length Pos. A

8.7 mm

B2A Insert width Pos. A

4.5 mm

B3A Inscribed circle diameter Pos. A

4.5 mm

BLDA Tool style code Position A

4

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

2.6 mm

CCONMS Connection count machine side

2

CICT Cutting item count

6

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.5 mm

D4A Cutting edge angle major Pos. A

90 Degree

D6A Wiper edge length Pos. A

1.3 mm

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/2/2018

DIN

ZYL02501005

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

6

FamilyProducts

Endmills with HELIPLUS HP ANKT 0702.. Inserts

HAND Cutting direction

R - Right

ID Technical product number

3103890

Interface codes

J6 / J61

ISO

ZYL10G2500h$06

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LH Head length

30 mm

LOC-03 CCFMS Connection code form

10

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501005

Name Identifying order number

HP E90AN-D32-6-W25-07

OAL Overall length

95 mm

RMPX Ramping angle maximum

1.4 Degree

TCDCONMS ISO-tolerance class shank diameter

h6

Working process

No working processes available

WT Weight of item

0.38 kg

ZEFF Face effective cutting edge count

6

ZEFP Peripheral effective cutting edge count

6
