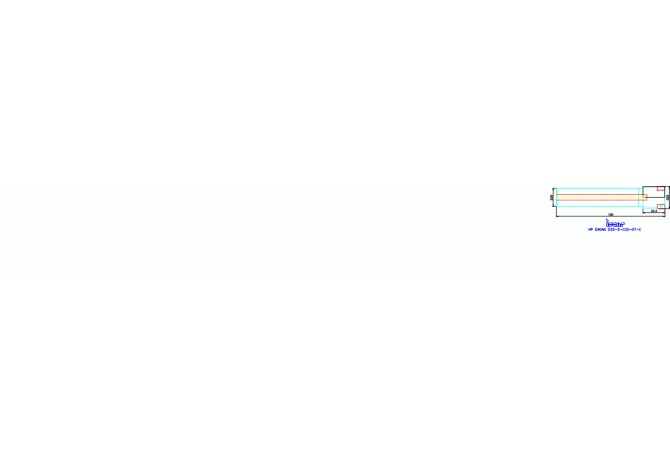

HP E90AN-D25-5-C20-07-C

HP E90AN-D25-5-C20-07-C HP E90AN-D25-5-C20-07-C

HP E90AN-D25-5-C20-07-C

Iscar
Артикул: 3103734
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
0.7 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
2 - With Coolant exit, radial
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL02000115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
Endmills with HELIPLUS HP ANKT 0702.. Inserts
HAND Cutting direction
R - Right
ID Technical product number
3103734
Interface codes
J6 / J61
ISO
ZYL01G2000h$06
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
120 mm
LH Head length
24 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL01G2000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000115
LPR Protruding length
70 mm
Name Identifying order number
HP E90AN-D25-5-C20-07-C
OAL Overall length
120 mm
RMPX Ramping angle maximum
2 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.28 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
