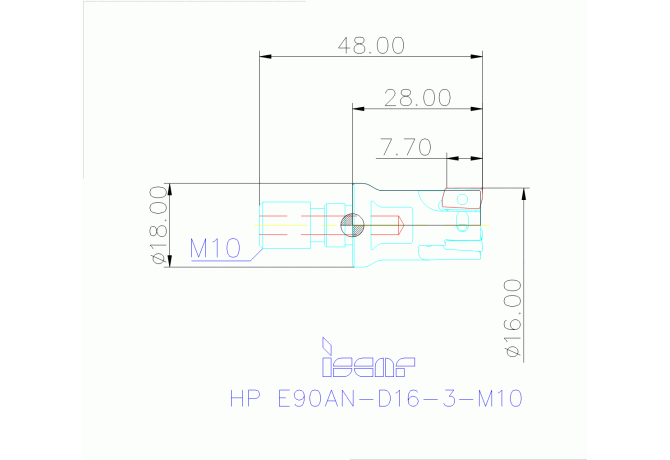

HP E90AN-D16-3-M10

HP E90AN-D16-3-M10 HP E90AN-D16-3-M10

HP E90AN-D16-3-M10

Iscar
Артикул: 3103906
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
7.7 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/2/2018
DIN
SAI01000215
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
90\S\0 Endmills with a FLEXFIT Threaded Adaptation Carrying HELIPLUS HP ANKT 070
HAND Cutting direction
R - Right
ID Technical product number
3103906
Interface codes
J6 / J61
ISO
SAI02G1000$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAI Screw mounting ISCAR
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
18 mm
LOC-03 ISO
SAI02G1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAI01000215
LPR Protruding length
28 mm
Name Identifying order number
HP E90AN-D16-3-M10
OAL Overall length
48 mm
RMPX Ramping angle maximum
3.2 Degree
Working process
No working processes available
WT Weight of item
0.04 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
